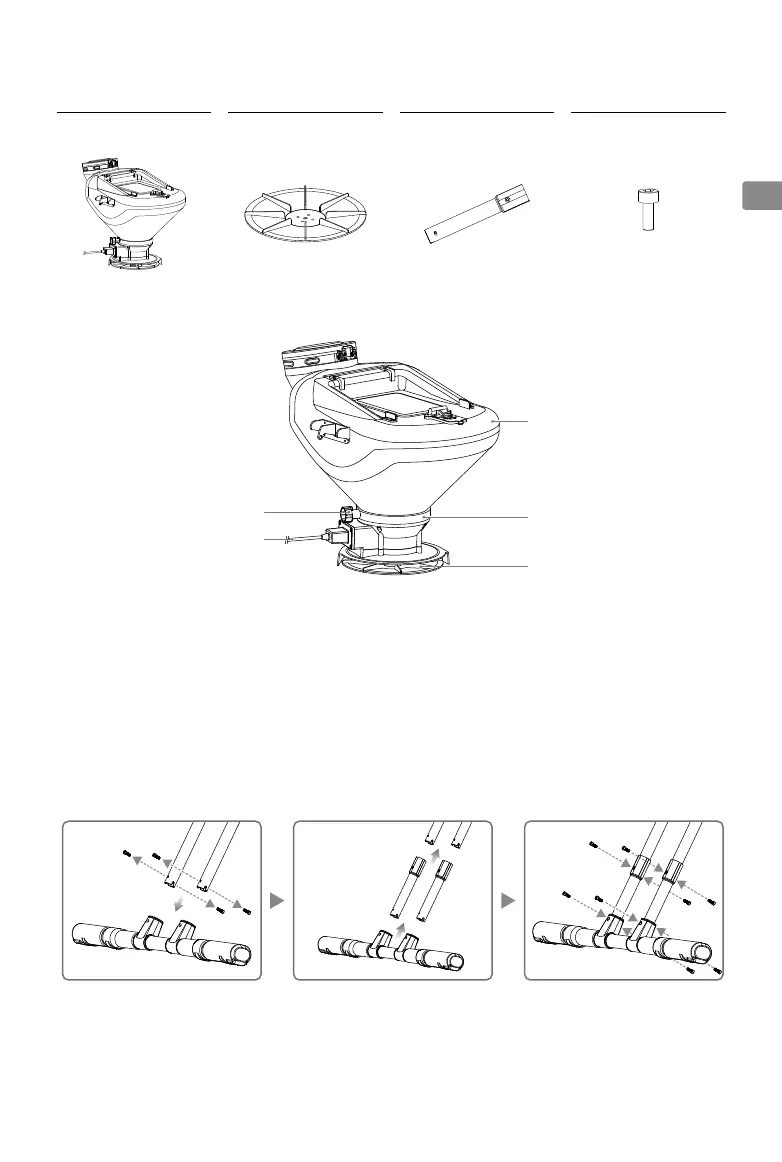

Overview
Spread Tank
Spreader
Spinner Disk
Spreader Lock Knob
Cable
Installation
NOTE:
A hex key for M3 screws is required for installation.
1. Mount landing gear leg extenders when using with an Agras MG-1S aircraft.
a. Remove the eight M3×6 screws in the lower section of the two landing gear legs. Then
remove the two landing skids.
b. Mount the four landing gear leg extenders to the original landing gear legs. Be sure to align
the screw holes. Then insert and tighten the eight M3×6 screws.
c. Re-mount the two landing skids using the eight M3×6 screws.
In the Box
Spreading System × 1
Spinner Disk × 2 (Spare)
Landing Gear Leg
Extender × 4
Screw Pack
M3 × 6
2. Mount the Spreading System to the aircraft.
a. Loosen the four M3 screws on xing bracket on the left landing gear leg. Then slide the xing
bracket to a position 125 mm below the landing gear mounting base as shown below, and
tighten the four screws.
To Next Page
