DR16 Receiver

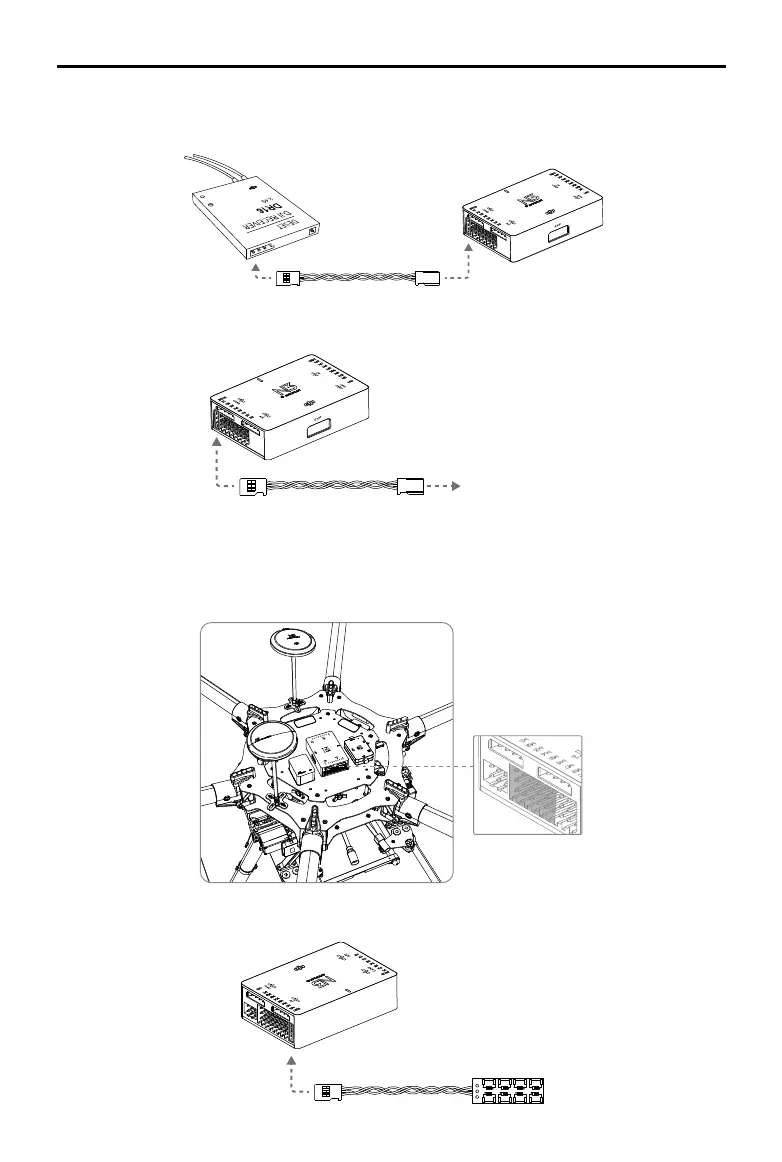

Connect the DR16 receiver DBUS port to the Flight Controller S-Bus Port with a servo cable.
S-BUS Receiver
Connect the S-BUS receiver to the Flight Controller S-Bus Port with a servo cable.
Connecting to the ESCs
S900 Connection Diagram
1. Connect the M1-M6 ports on the bottom board of the S900 to the M1-M6 ports on the Flight
Controller in order.
S- Bus Receiver
2. The iESC port can connect to the DJI Smart ESC Communication Cable if using the DJI
Intelligent ESC.
P01603.01
G
B
A
