Remote Controller
The remote controller features DJI’s long-range transmission technology OcuSync that is capable of
controlling the aircraft and the gimbal cameras at a maximum transmission range of 4.3 mi (7 km)*.
Connect an iPad to the remote controller via the USB port to use the DJI GS Pro app to plan and perform
missions. Export the captured images for analysis and create multispectral maps. The remote controller has
a rechargeable LiPo battery with a maximum battery life of approximately 6 hours*.

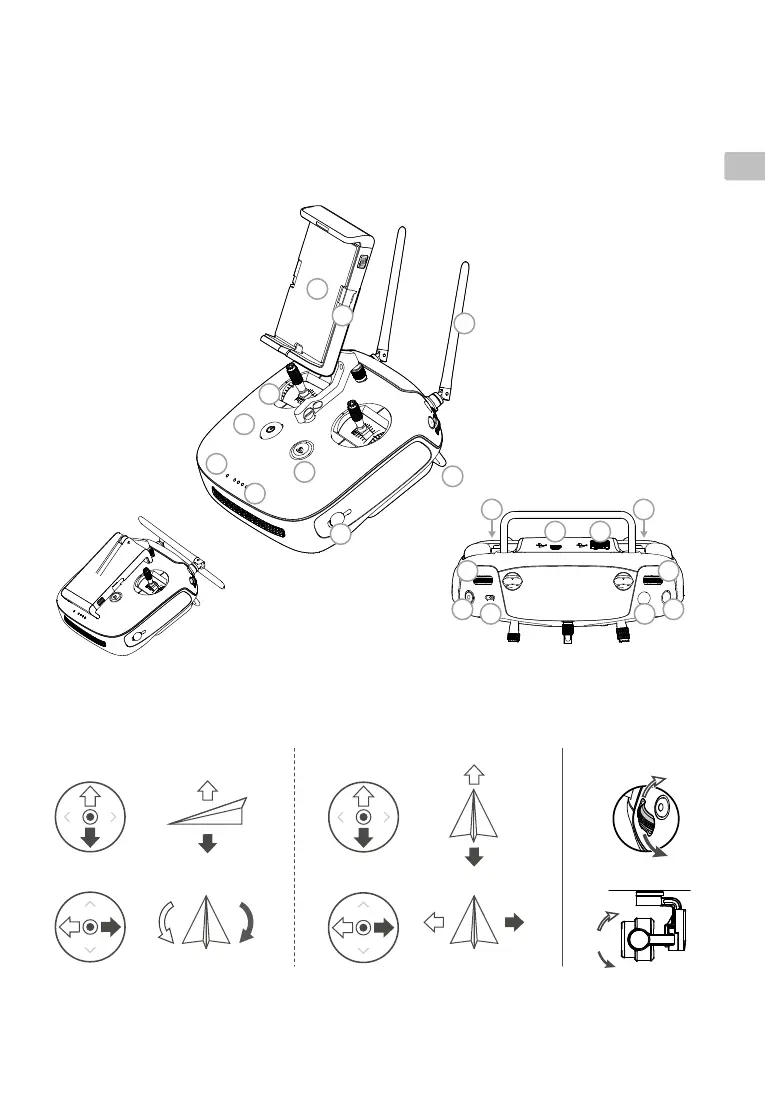

The figure below shows the function that each control stick movement performs, using Mode 2 as an
example. The left stick controls the aircraft’s altitude and heading, while the right stick controls its forward,
backward, left and right movements. The gimbal dial controls the camera’s tilt.
* The remote controller is able to reach its maximum transmission distance (FCC/NCC) in a wide open area with no
Electro-Magnetic Interference, and at an altitude of about 400 ft (120 m).
The maximum runtime is tested under laboratory environment, only for your reference.
Pictures will only be taken when the shutter button is fully pressed.
Left Stick
Right Stick
Up
Down
Forward
Backward
Gimbal Dial
Right Left
Turn RightTurn Left
11
1819
12
13
15
16
17
17
14
10
1
2
3
4
5
6
7
8
9
1. Power Button
2. Return to Home (RTH)
Button
3. Control Sticks
4. Status LED
5. Battery Level LEDs
6. Power Port
7. Mobile Device Holder
8. Small Device
Positioning Tabs
(for mobile phones)
9. Antennas
10. Handle Bar
11. Gimbal Dial
12. Reserved Dial
13. Video Recording Button
14. Flight Mode Switch
15. Shutter Button*
16. Reserved Blank Button
17. C1 and C2 Buttons
(customizable)
18. USB Port (for mobile
device connection)
19. Micro USB Port
Folded
