dji PHANTOM Quick Start Manual

©2012-2013 DJI Innovations. All Rights Reserved. 10 |
4. Mount the Landing Gear with the Compass Module if Required
If the GPS ATTI. Mode is desired, you must first mount the landing gear which contains the Compass Module.
1. Prepare the aircraft and the landing gear.
2. Mount the landing gear with the Compass Module to the right part (shown as the following chart); make sure the
5-pin cable is through the hole of the landing gear. Fix the landing gear with screws (M3x6), and then connect the
5-pin cable to the Compass Module.
3. Mount the other landing gear to the left part.
4. Fix the antenna and the 5-pin cable on both landing gear by using the white adhesive tape.

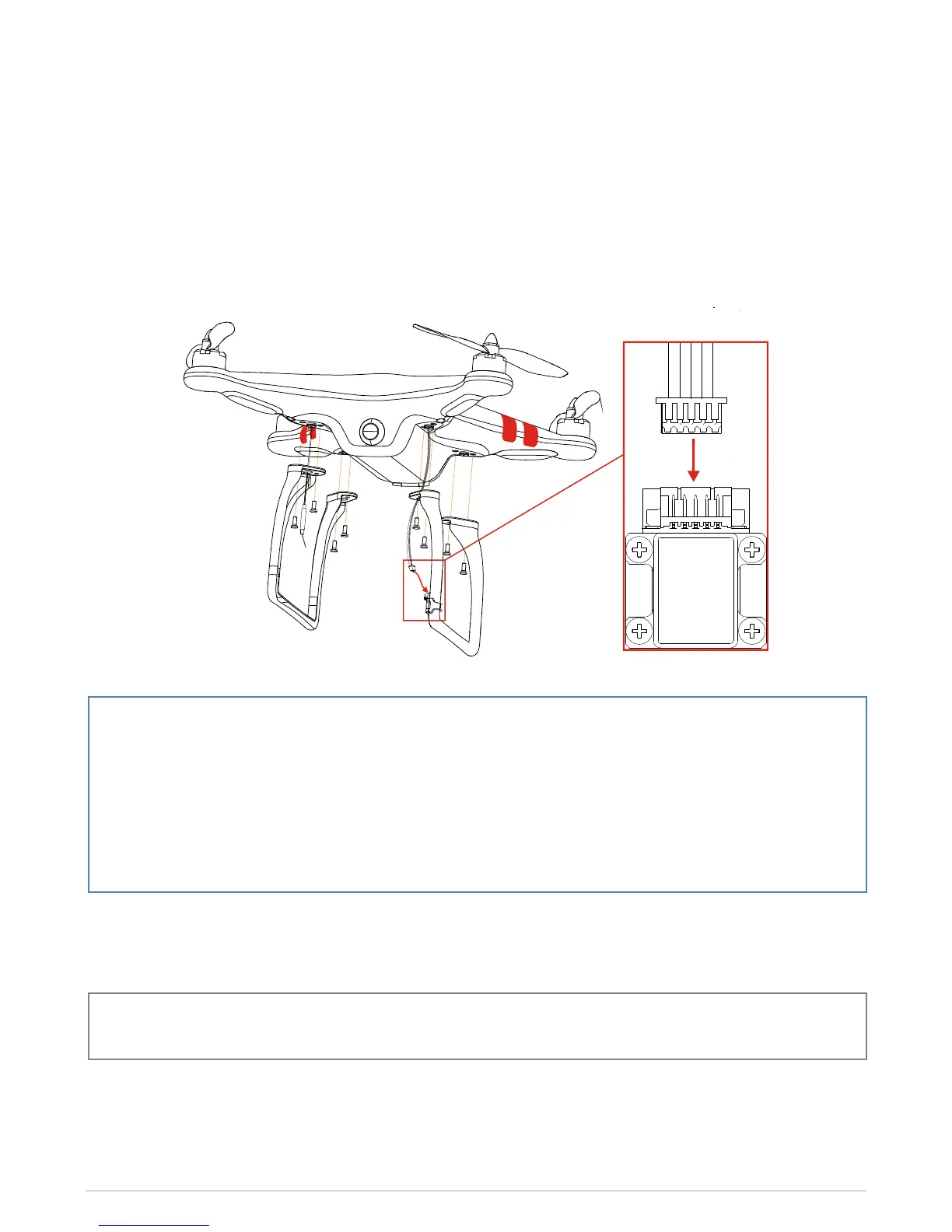

Landing Gear Mounting Compass Module Connecting
 When flying, please make sure the compass module is stationary and firm.
 If the Landing Gear with the compass module mount on has been deformed, please replace it with a new one and
mount it as the procedures above.
 The compass module is not waterproof, and not anti-oil.
 DO NOT use the magnetic screwdriver. Otherwise, keep the screwdriver at least 10cm away from the compass
module, to avoid magnetic interference.
5. Turn on the Transmitter
1. Set the IOC and Control Mode switch to the top position.
2. Turn on the power switch of the Transmitter

dji PHANTOM Specifications

General

Megapixel	14 MP
Supported video modes	1080i, 1080p, 720p
Battery capacity	5200 mAh
Product color	Red, White
Frequency band	5.728－5.85 GHz
Maximum operating distance	400 m

Weight and Dimensions

Weight	1284 g
