dji PHANTOM Quick Start Manual

©2012-2013 DJI Innovations. All Rights Reserved. 9 |
Before Flying
1. Installing the Transmitter Batteries
1. Open the battery compartment cover of the Transmitter.
2. Install 4x AA battery (5#) in accordance with the + /- pole.
3. Close the battery compartment cover of the Transmitter.
 DO NOT use the PHANTOM transmitter (receiver) with the other third party remote control equipment.
 Risk of explosion if replaced by an incorrect type.
 Dispose of used batteries according to the instructions.
 Remove the batteries after use.
 When the voltage is lower than 4V, the transmitter will alarm with sound of “BB…………”, please change the
batteries.
2. Battery Charging – LiPo Battery
Please use the full charged battery of 3S LiPo.
(Recommended parameters: 733496 - 2200MAH-20C－11.1V.)
The built-in ESCs of PHANTOM ONLY support 3S (11.1V) power supply. DO NOT use the battery of higher voltage.

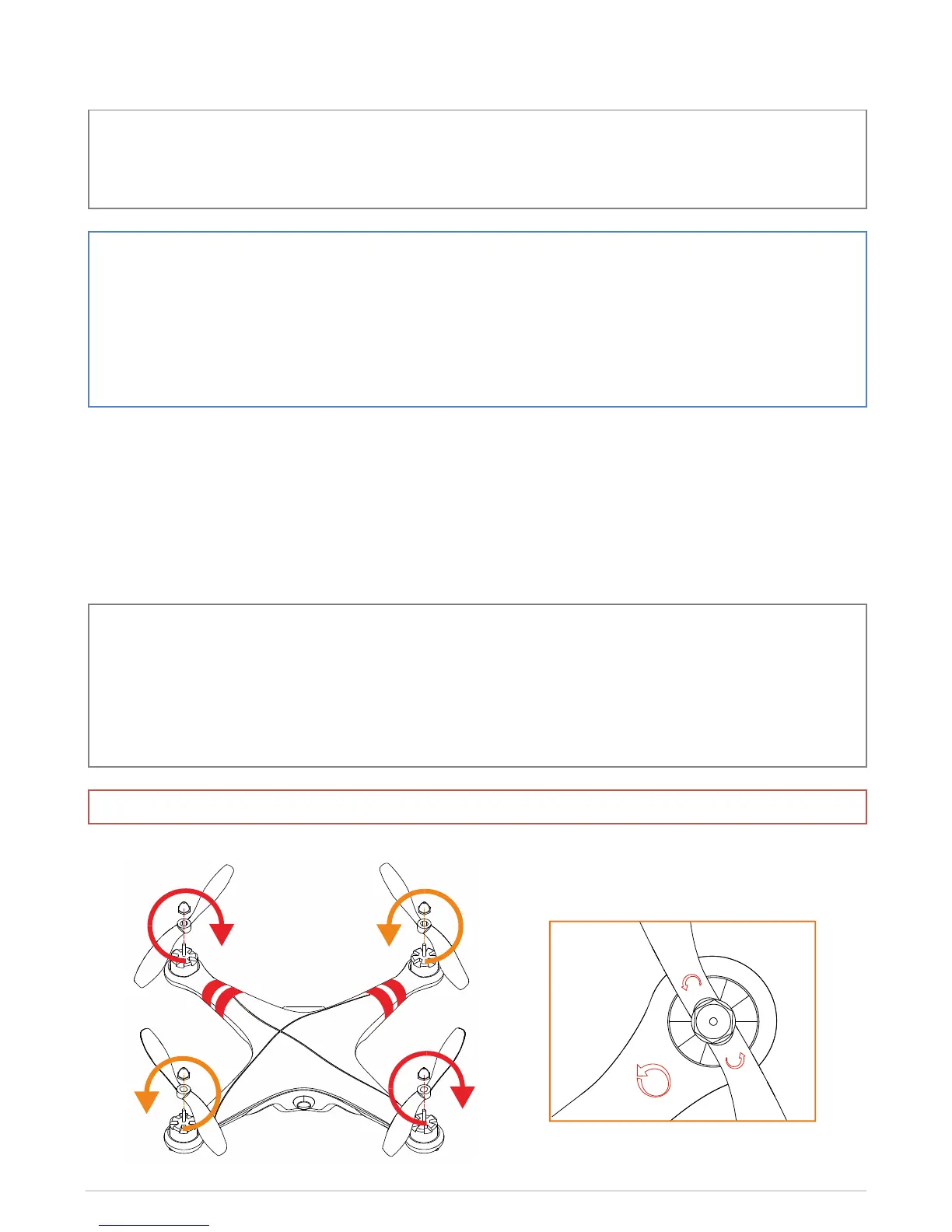

3. Fitting the Propeller
1. First prepare the aircraft and the propellers (original 8-inch).
2. Assemble the propellers (the side with rotary mark facing up) to the aircraft. Make sure the rotary mark on the
propeller is the same as the mark on the frame arm. The arrow’s direction stands for the rotating direction of the
motors.
3. Finally fit the propeller nuts.
DO NOT use thread locker when mounting the propellers, just tighten the screws is enough.

dji PHANTOM Specifications

General

Megapixel	14 MP
Supported video modes	1080i, 1080p, 720p
Battery capacity	5200 mAh
Product color	Red, White
Frequency band	5.728－5.85 GHz
Maximum operating distance	400 m

Weight and Dimensions

Weight	1284 g
