ROBOMASTER EP Core User Manual

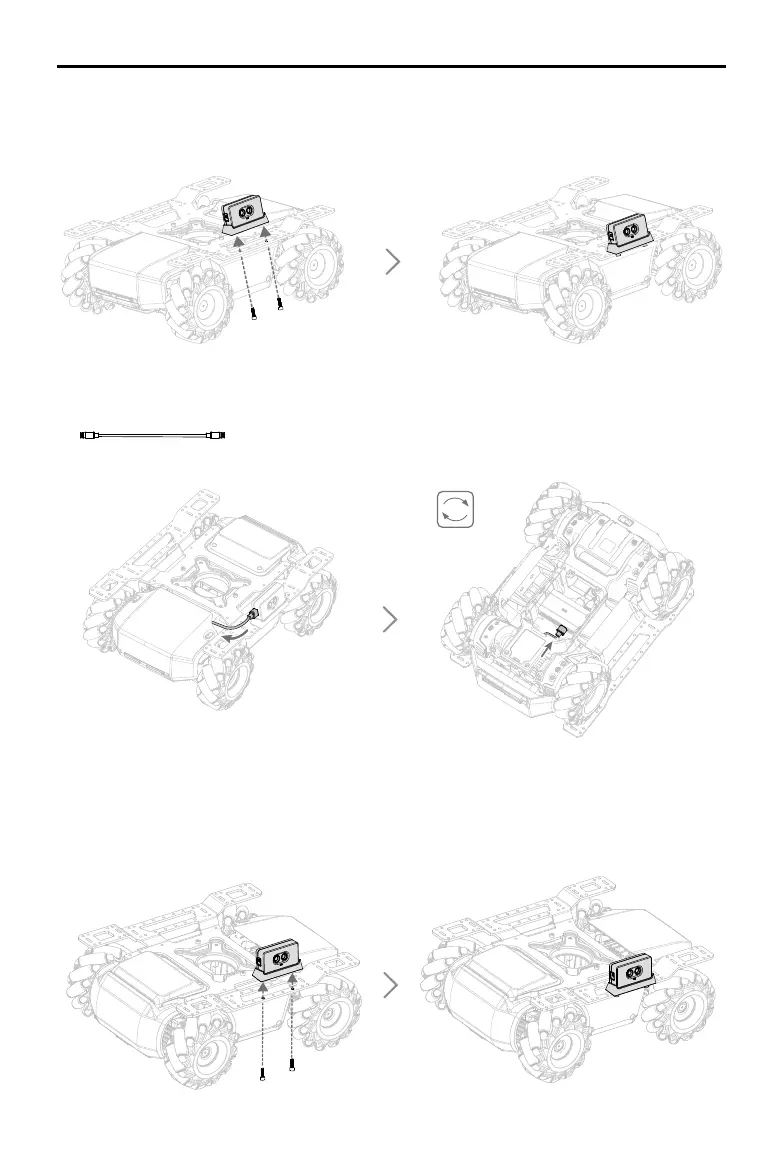

Right side:
4. Use two M3-D screws to x the TOF module to the right side of the extension platform, located
above the chassis right armor.
3. As shown below, connect the TOF module with the power connector module with a 14cm data
cable.
14 cm
Left side:
2. Use two M3-D screws to x the TOF module to the left side of the extension platform, located
above the chassis left armor.
