ROBOMASTER EP Core User Manual

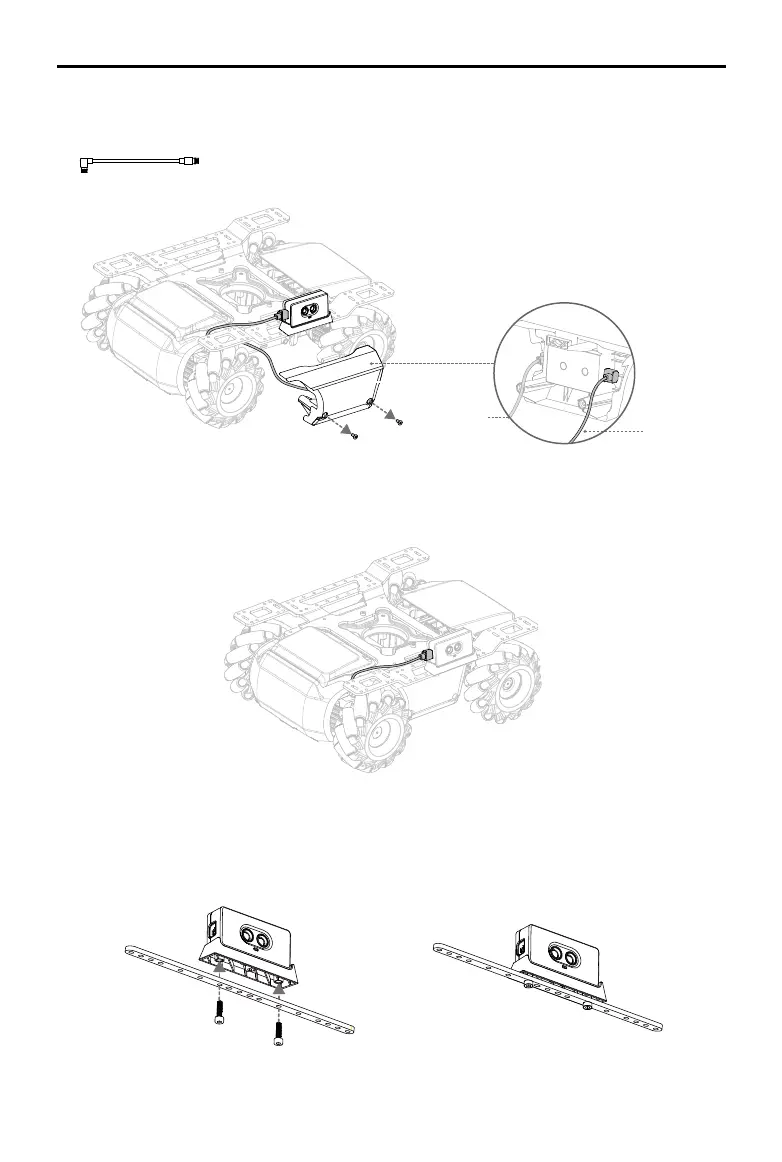

5. After removing the screws of the right armor, connect the TOF module with the right armor with a
12cm data cable.
12 cm
Armor data
cable
Infrared
distance
sensor data
cable
6. Arrange the data cable as shown below and remount the right armor.
Front side:
7. Use two M3-D screws to x the TOF module to the straight connecting rod.
