ROBOMASTER EP Core User Manual
Serial Protocol Instruction
The infrared distance sensor supports CAN bus communication and plaintext serial protocol,
enabling the sensor to be used on a third-party platform. Below shows the port configuration
parameters:
Property Parameter
Baud rate 115200
Data bits 8
Stop bit 1
Parity bit /

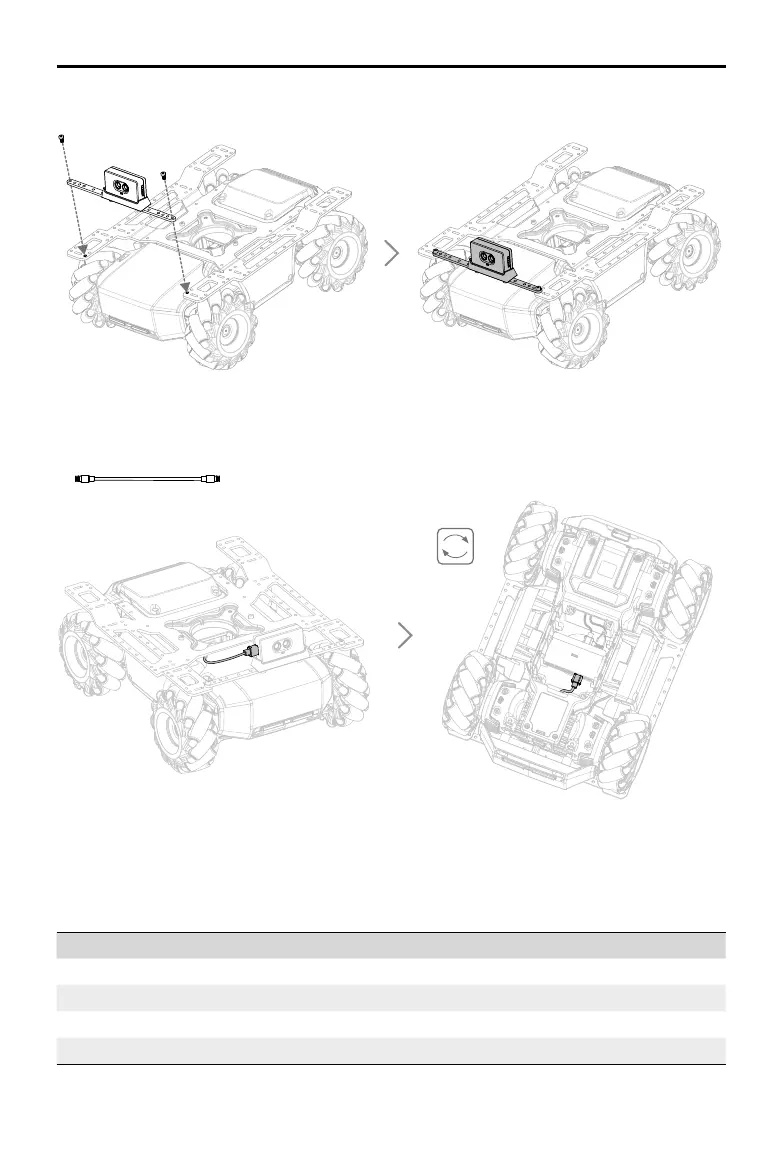

9. As shown below, connect the TOF module with the power connector module with a 14cm data
cable.
14 cm
8. Use two M3-C screws to x the straight connecting rod to the front of the extension platform.
