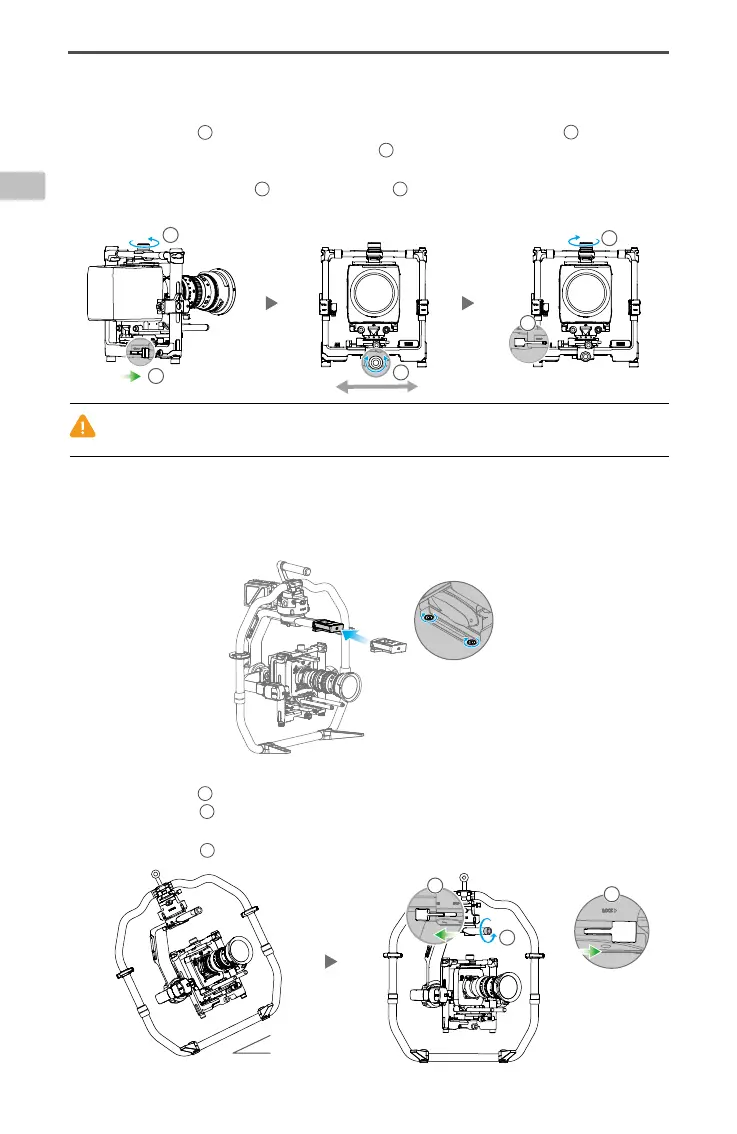

C. Balancing the Roll Axis
a. Unlock the roll axis.
b. Toggle the lever
1
to the unlocked position, then loosen the top securing knob
2
. Adjust the
camera's position by turning the adjusting knob
3
until the camera remains still when rotating the
tilt axis 45 degrees to the left or right.
c. Tighten the securing knob
4
and toggle the lever
5
to the lock position.
d. Lock the roll axis.
Recheck the tilt axis balance. Loosen the securing knob and adjust the camera's position if the tilt axis
is not balanced.
D. Balancing the Pan Axis
* It is recommended to mount the provided MotionBlock before balancing the pan axis when shooting in
a high-speed situation for increased gimbal performance. Attach the MotionBlock to the pan axis and
tighten the screws as shown.
a. Unlock the pan axis. Lift up one side of the Grip.
b. Toggle the lever
1
to the unlocked position, then adjust the camera's position by turning the
adjustment knob
2
until the camera remains still when rotating the pan axis 45 degrees while
lifting up one side of the Grip.
c. Tighten the lever
3
.
*
3
2
4
5
1
1
2
1
3

dji RONIN 2 Specifications

General

Gimbal Accuracy	±0.02°
Gimbal Type	3-axis
Pan Range	360°
Operating Frequency	2.4 GHz
Battery Voltage	22.2 V
Compatibility	Various cameras and accessories
Payload Capacity	13.6 kg
Battery Life	2.5 hours
Operating Temperature	-20°C to 50°C
Tilt Range	-135° to 135°
Roll Range	360°
Connectors	USB
Charging Time	Approx. 90 minutes (using DJI Charger)
