DJI Smart Controller User Manual

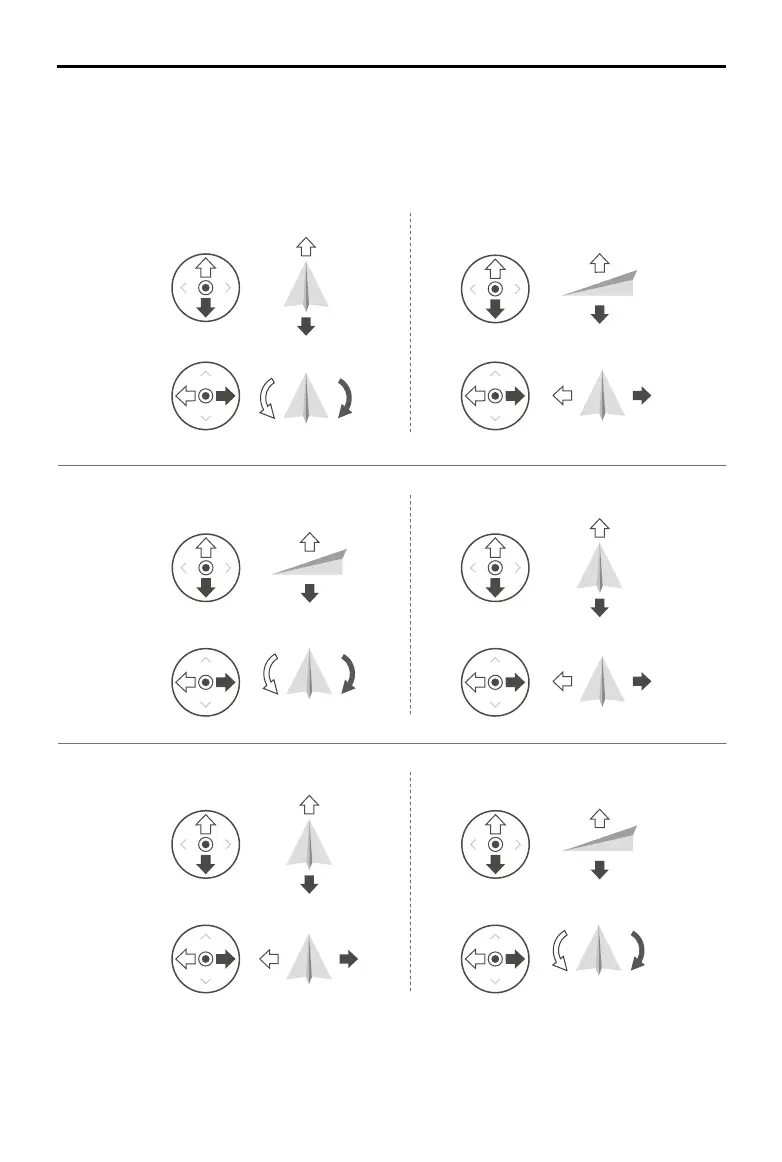

The gure below explains how to use each control stick. Mode 2 has been used as an example.
Right StickLeft Stick
Turn RightTurn Left
UP
Down
RightLeft
UP
Down
Turn RightTurn Left
RightLeft
Forward
Backward
Left Stick Right Stick
Forward
Backward
Right Stick
UP
Down
Forward
Backward
Left Stick
Turn RightTurn Left
RightLeft
Mode 3
Mode 1
Mode 2
In each of the three pre-programmed modes, the aircraft hovers in place at a constant orientation
when both sticks are centered. See the gures below to see the function of each control stick in the
three preprogrammed modes.

dji Smart Controller Specifications

General

Product type	Control unit
Compatibility	Mavic 2
Product color	Black
Brand compatibility	DJI
Operating temperature (T-T)	-20 - 40 °C
Battery voltage	7.2 V
Battery capacity	5000 mAh
Battery life (max)	2.5 h
Rechargeable battery	Yes
Battery recharge time	2 h
Output current (5V)	0.9 A
Output current (12V)	2 A

Weight and Dimensions

Depth	181 mm
Width	177.5 mm
Height	60 mm
Weight	630 g
