dji Smart Controller User Manual

4
©
2019 DJI All Rights Reserved.
DJI Smart Controller User Manual

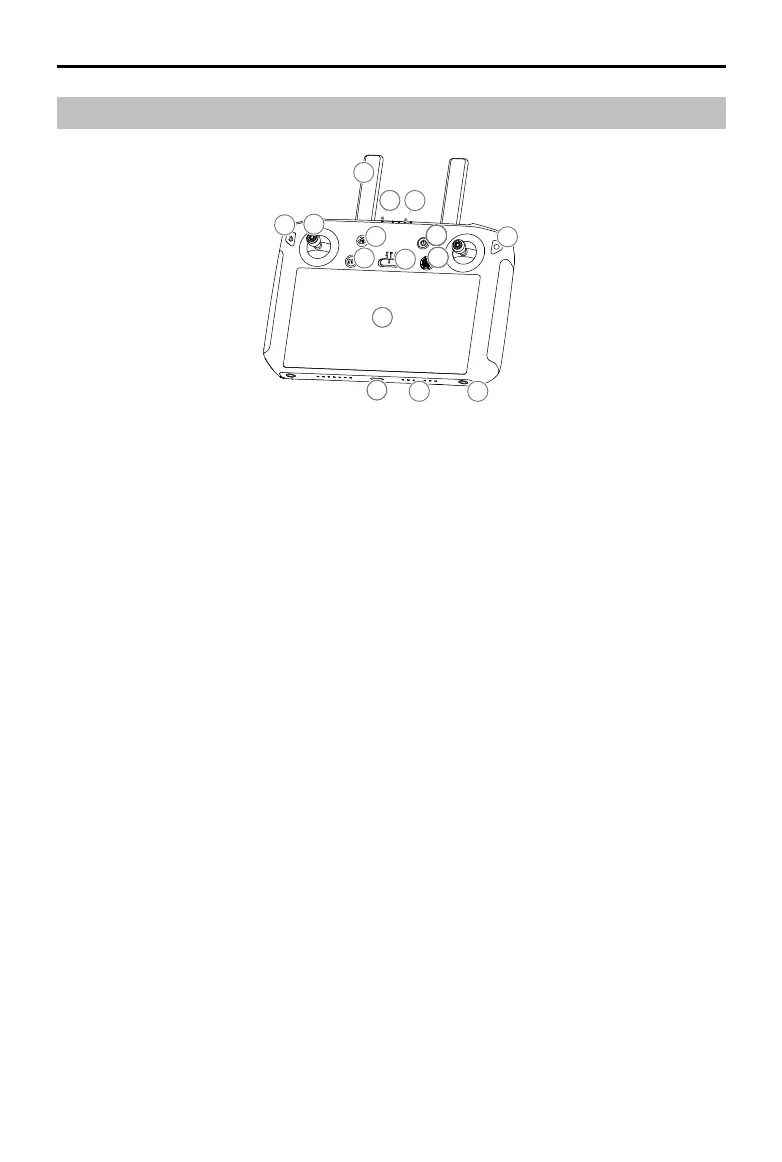

Overview
1
6
9999
1010101010101010101010101010
10
12
10
13
77
8
11
3
2
4
14
28
15
5
16
17
18
19
20
21
22
23
24
25
26
27
1 Antennas
Relays aircraft control and video signal.
2 Back Button / Function Button
Press once to return to the previous
page and press twice to go back to the
homepage. Hold to view a guide to using
button combinations. Refer to the Button
Combinations section for more information.
3 Control Sticks
Control the orientation and movement of
the aircraft when the remote controller
is linked to an aircraft. Go to Settings >
Control Stick Navigation, to customize the
navigation settings.
4 RTH Button
Press and hold to initiate Return to Home
(RTH). Press again to cancel RTH.
5 Flight Pause Button
Press once to exit TapFly, ActiveTrack,
and other Intelligent Flight Modes.
6 Flight Mode Switch
Switch between T-mode, P-mode, and
S-mode.
7 Status LED
Indicates the linking status and warnings
for the control sticks, low battery level, and
high temperature.
8 Battery Level LEDs
Displays the battery level of the remote
controller.
9 5D Button
The default conguration is listed below. The
functions can be set in DJI GO 4.
Up: Recenter gimbal/move gimbal downward
Down: Focus switch/metering
Left: Decrease EV value
Right: Increase EV value
Press: Open DJI GO 4 Intelligent Flight
Modes menu.
When the remote controller is not linked to
an aircraft, the 5D button can be used to
navigate on the remote controller. Go to
Settings > Control Stick Navigation to enable
this function.
10 Power Button
Use to turn the remote controller on and off.
When the remote controller is powered on,
press the button to enter sleep mode or to
wake up the controller.
11 Conrm Button / Customizable Button C3
When the remote controller is not linked to
an aircraft, press to conrm a selection.
When linked to an aircraft, the button cannot
be used to conrm a selection. However,
the function of the button when linked to an
aircraft can be customized in DJI GO 4.

dji Smart Controller Specifications

General

Product type	Control unit
Compatibility	Mavic 2
Product color	Black
Brand compatibility	DJI
Operating temperature (T-T)	-20 - 40 °C
Battery voltage	7.2 V
Battery capacity	5000 mAh
Battery life (max)	2.5 h
Rechargeable battery	Yes
Battery recharge time	2 h
Output current (5V)	0.9 A
Output current (12V)	2 A

Weight and Dimensions

Depth	181 mm
Width	177.5 mm
Height	60 mm
Weight	630 g
