dji Smart Controller User Manual

©
2019 DJI All Rights Reserved.
5
DJI Smart Controller User Manual
1
6
9999
1010101010101010101010101010
10
12
10
13
77
8
11
3
2
4
14
28
15
5
16
17
18
19
20
21
22
23
24
25
26
27
1
6
9999
1010101010101010101010101010
10
12
10
13
77
8
11
3
2
4
14
28
15
5
16
17
18
19
20
21
22
23
24
25
26
27

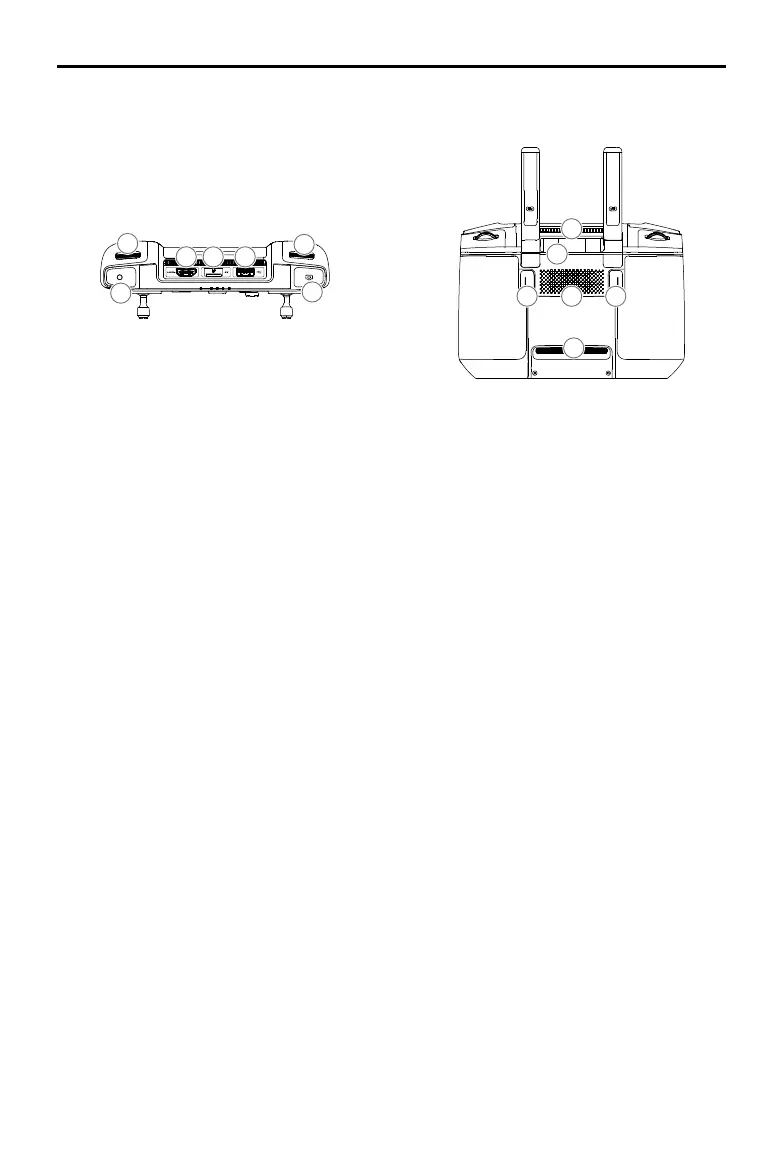

12 Touchscreen
Tap to select.
13 USB-C Port
Use to charge or update the remote
controller.
14 Microphone
Records audio.
15 Screw Holes
16 Gimbal Dial
Use to control the camera’s tilt.
17 Record Button
Press to start recording video. Press
again to stop recording.
18 HDMI Port
For video output.
19 microSD Card Slot
Use to insert a microSD card.
20 USB-A Port
Use to connect external devices.
21 Focus/Shutter Button
Half press to focus, and then press to
take a photo.
22 Camera Settings Dial
Mavic 2 Pro: Turn the dial to adjust
the exposure compensation (when
in Program mode), aperture (when in
Aperture Priority and Manual mode), or
shutter (when in Shutter Priority mode).
Mavic 2 Zoom: Turn to adjust the zoom
of the Mavic 2 Zoom camera.
23 Air Vent
Used for heat dissipation. DO NOT cover
the air vent during use.
24 Sticks Storage Slot
Use to store a pair of control sticks.
25 Customizable Button C2
The default conguration is playback.
The conguration can be set in DJI GO 4.
26 Speaker
Outputs sound.
27 Customizable Button C1
The default conguration is center focus.
The conguration can be set in DJI GO 4.
28 Air Intake
Used for heat dissipation. DO NOT cover
the air intake during use.

dji Smart Controller Specifications

General

Product type	Control unit
Compatibility	Mavic 2
Product color	Black
Brand compatibility	DJI
Operating temperature (T-T)	-20 - 40 °C
Battery voltage	7.2 V
Battery capacity	5000 mAh
Battery life (max)	2.5 h
Rechargeable battery	Yes
Battery recharge time	2 h
Output current (5V)	0.9 A
Output current (12V)	2 A

Weight and Dimensions

Depth	181 mm
Width	177.5 mm
Height	60 mm
Weight	630 g
