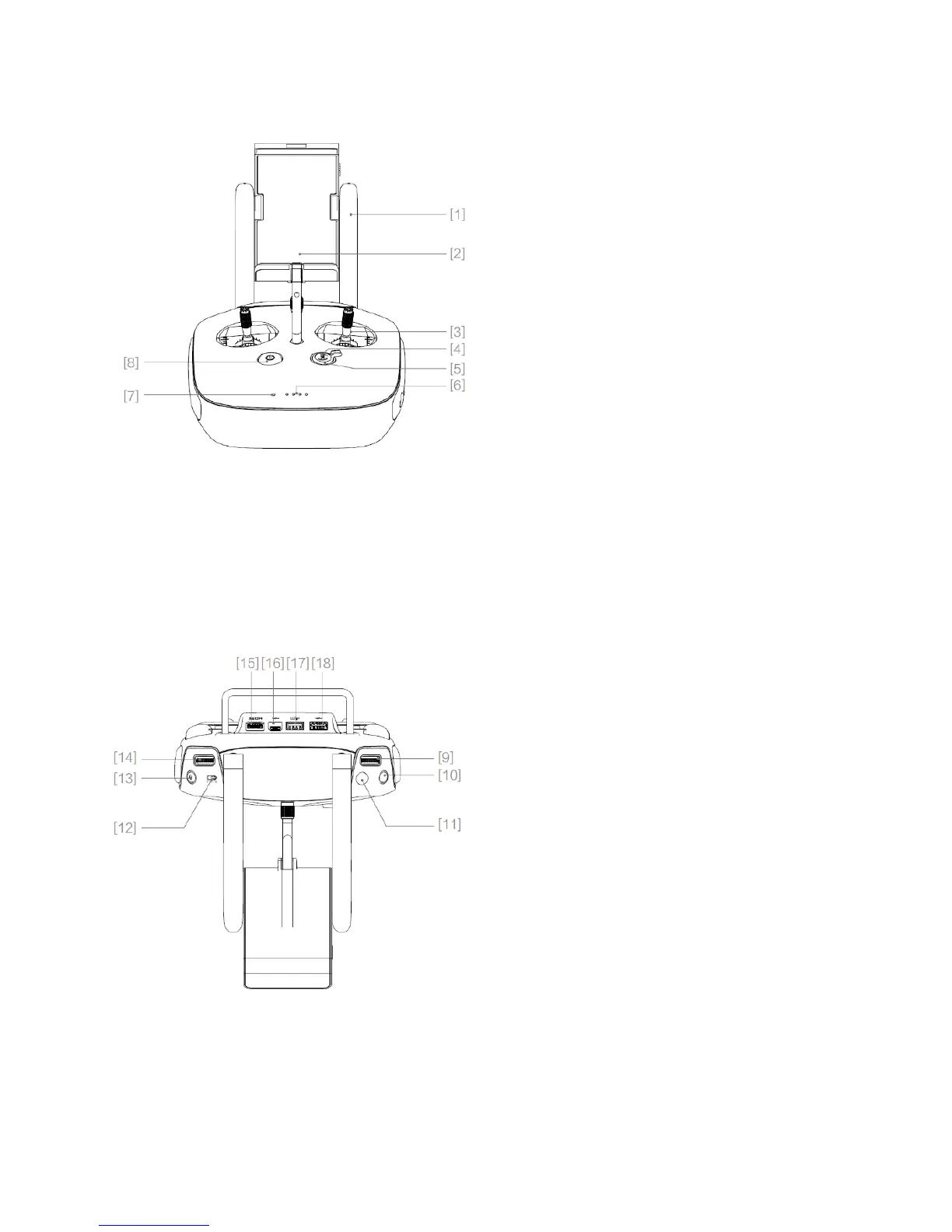

Remote Controller
[1] Antenna
Relays aircraft control and video signal.
[2] Mobile Device Holder
Securely mounts your mobile device to the
remote controller
[3] Control Stick
Controls the aircraft’s orientation.
[4] Return-to-Home (RTH) Button
Press and hold the button to initiate Return-to-
Home (RTH).
[5] RTH LED
A circular LED around the RTH button that
displays RTH status.
[6] Battery Level LEDs
Displays the battery level of the Remote
Controller.
[7] Status LED
Displays the Remote Controller’s system status.
[8] Power Button
Used to turn the Remote Controller on and off.
[9] Camera Settings Dial
Turn the dial to adjust camera settings. (Only
functions when the remote controller is
connected to a mobile device running the DJI GO
app.)
[10] Playback Button
Plays the captured images or videos again.
[11] Shutter Button
Press it to take a photo. In burst mode, a set
number of photos will be taken with one press.
[12] Flight Mode Switch
Used to switch between P-mode, A-mode and F-
mode.
[13] Video Recording Button
Press to start recording a video. Press again to
stop recording.
[14] Gimbal Dial
Use this dial to control the tilt or pan of the
gimbal.
[15] Mini-HDMI Mini HDMI Port
