DKS 1503 - Aiphone Intercom Station Connections

1503-065-E-3-14 Page 13

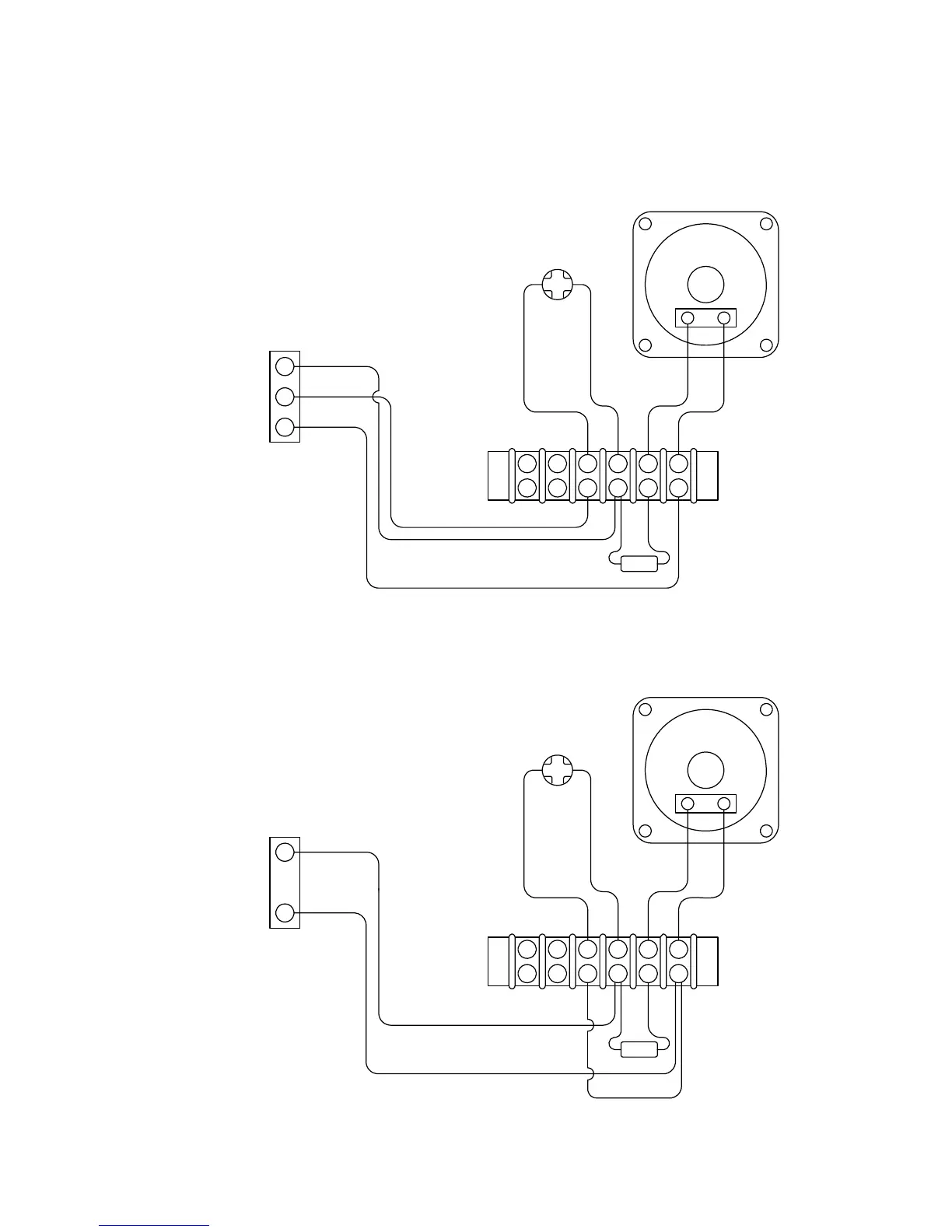

1.5 Aiphone Intercom Station Connections
These wire diagrams are provided for convenience only. For detailed wiring information on Aiphone
products, visit their website at www.aiphone.com.
1
-
E
Aiphone
LEF Master
Station
Red Red Blue Blue
Push
Button
Speaker
Red Red Blue Blue
Push
Button
Speaker
+
47 uf
+
47 uf
1
E
Aiphone
LEM-1
Master
Station
