DKS 1503 - Section 1: Installation; Mounting Dimensions and Methods

1503-065-E-3-14 Page 7

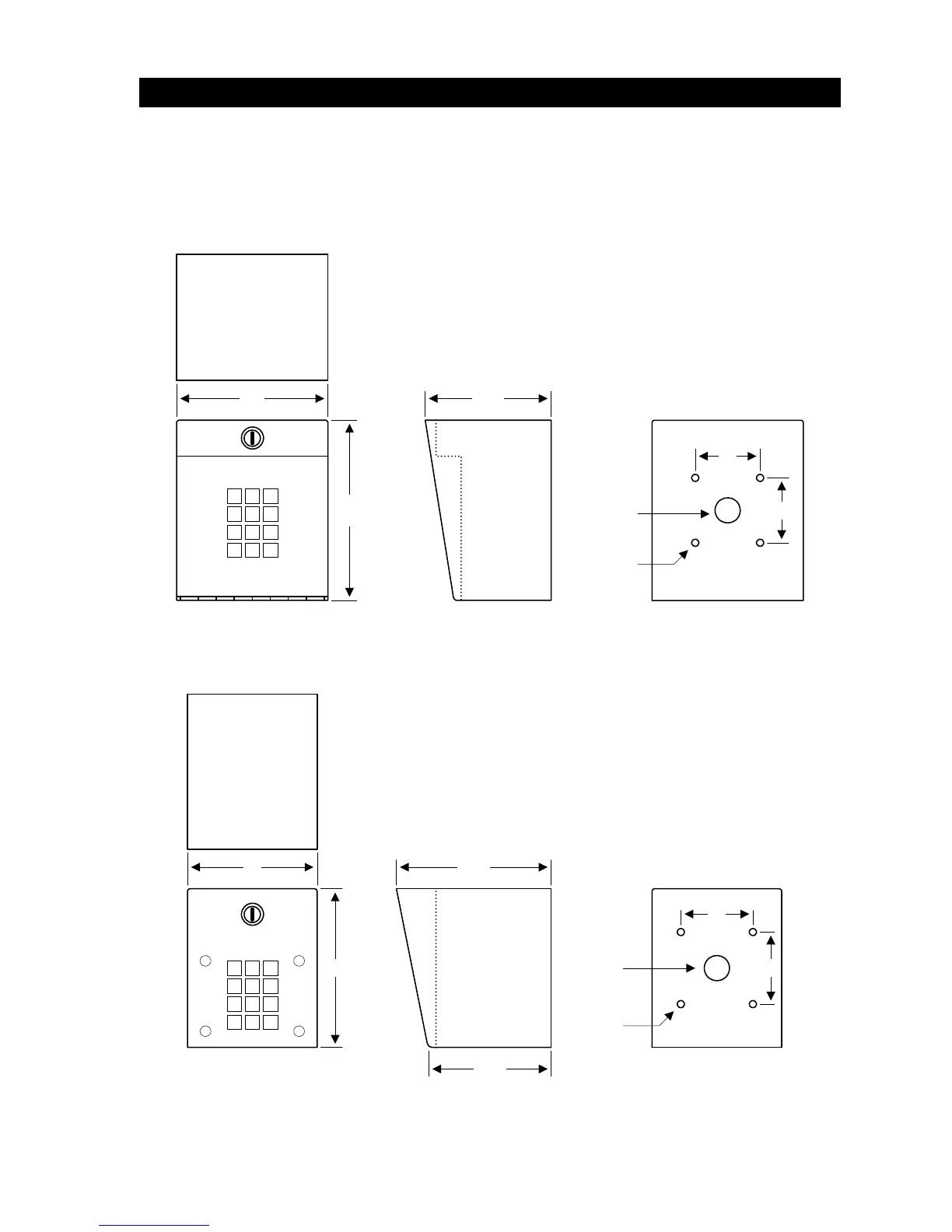

1.1 Mounting
Surface mount units can be mounted directly to a wall or pilaster, or they can be mounted using a
gooseneck mounting post (p/n 1200-045 or 1200-046).
SECTION 1 - INSTALLATION
6.375
4.375
2.5
2.5
.25
.875
1 2 3
654
987
#0
*
5.25
.875
2.5
2.5
.25
4.375
5.375
5.5
4.5
Model 1503-081 Surface Mount - Lighted
Model 1503-080 Surface Mount - Non Lighted
1 2 3
654
987
#0
*
