DLE 130 User Manual

ENGINE MOUNTING
During the break-in process the engine must be installed in an environment where vibraon can be ab-
sorbed i.e. in the model or with so mount if bench running. Hard mounng to a bench without adequate
vibraon damping may cause vibraon damage to internal parts and shorten the life of the engine. The
best way for break-in process is mount the engine in the model.
Always stand clear of and behind the propeller; never allow anyone including yourself, to be in front of or
to the sides of the propeller when starng or running the engine. Anyone near the engine should wear
protecve eyewear. NEVER WEAR LOOSE CLOTHING near the engine or propeller.
SPECIFICATIONS
• 13HP/8500rpm
• Idle Speed: 1300 rpm/min.
• Stac Thrust 28.5Kg / 100 meters Altude
• Stac Thrust 24.5Kg / 1800 meters Altude
• Recommended propeller: 27x12, 28x12, 28x10 (2 Blade), 25x12;26x10(3 Blade)
• Sparking plug：NGK CM6
• Displacement : 130cm3
• Bore and Stroke: 47mmx35.5mm
• Compression Rao: 9.2:1
• Recommended Oil Rao : 30:1
• Weight: Main engine - 2500g Exhaust pipe - 350g Ignion equipment - 190g

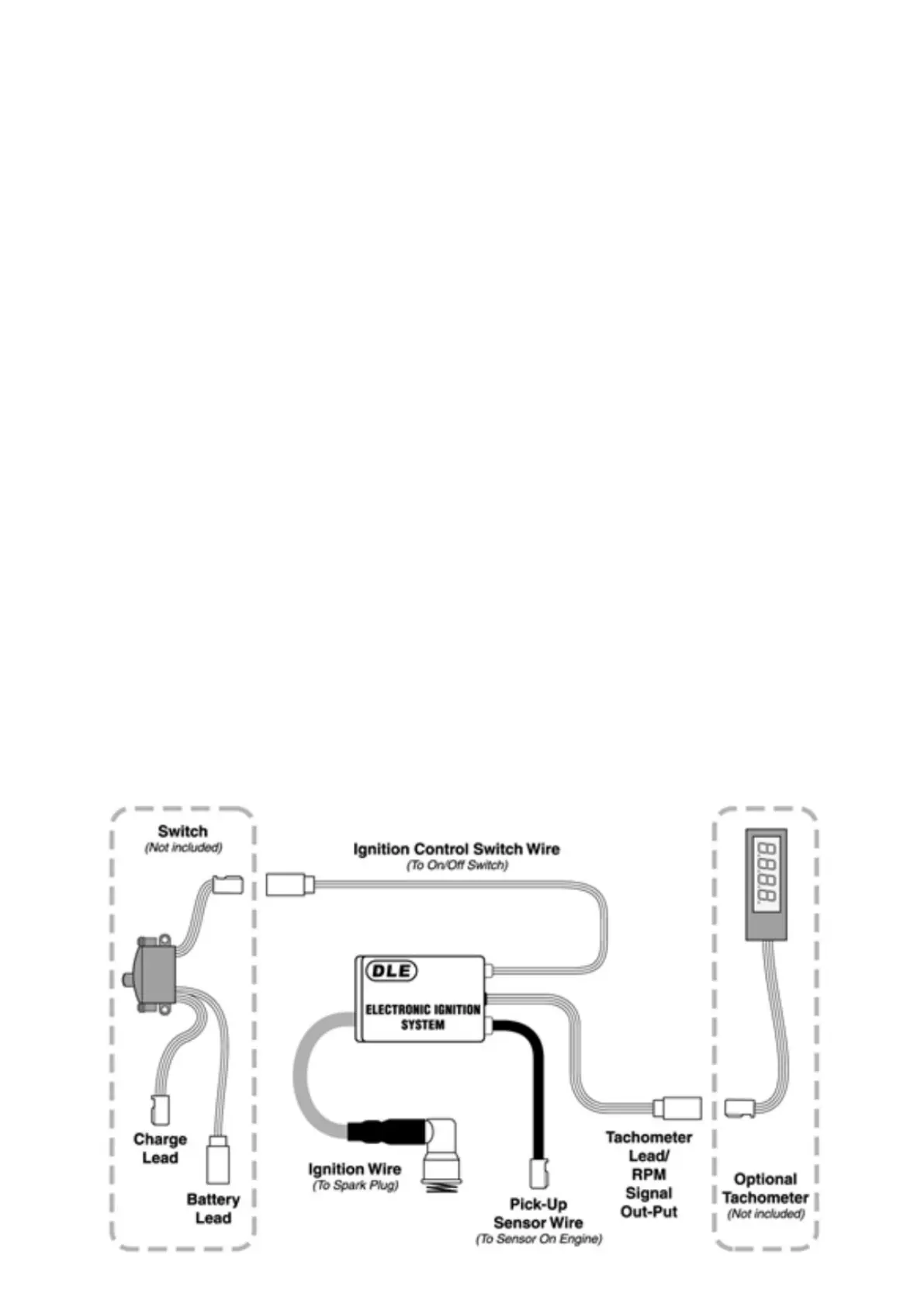

• Ignion voltage 4.8V-14V
