DLE DLE-85 User Manual

2

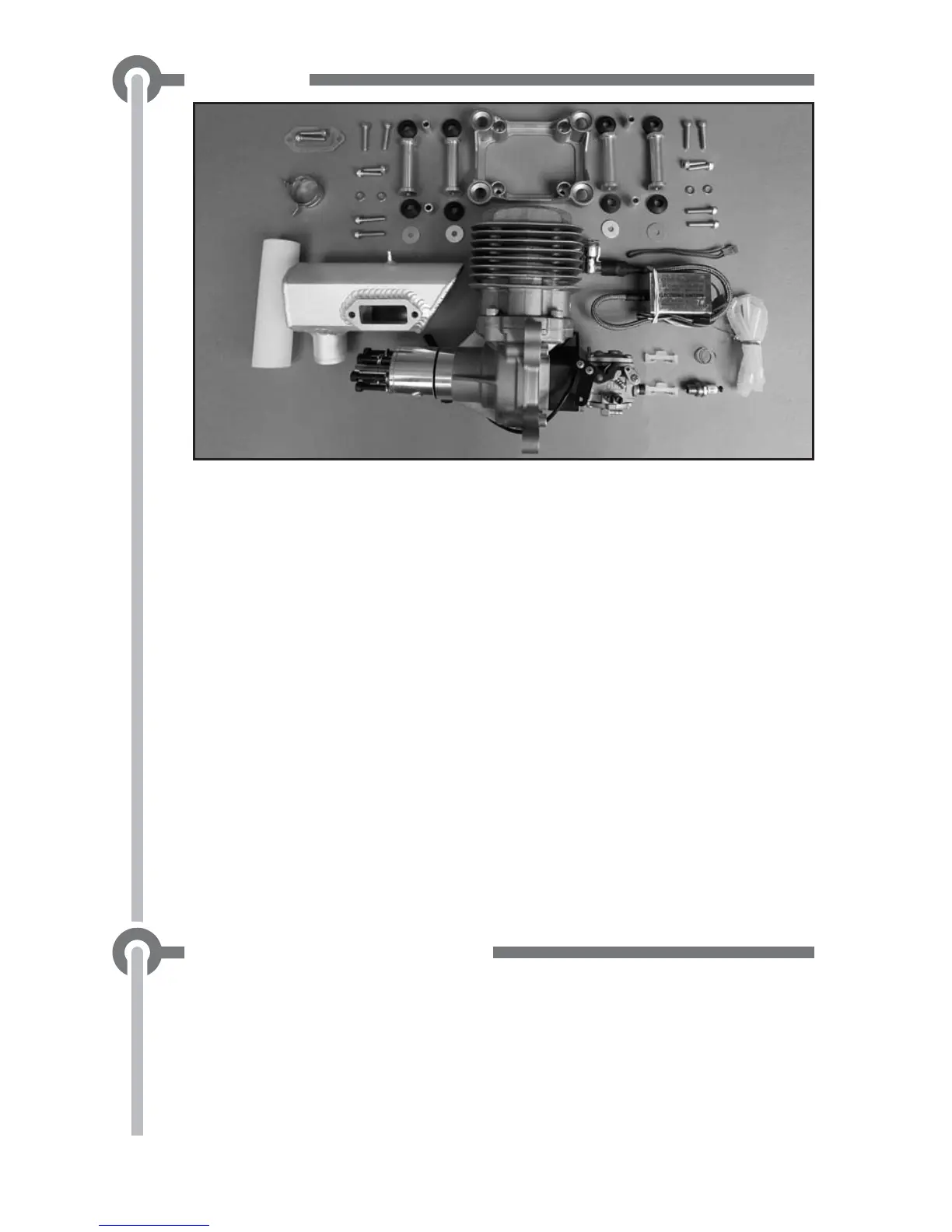

Parts List
(1) DLE-85 Gas Engine with DLE Carburetor
(1) CM6 Spark Plug with Ignition Wire Spring
(1) Muffl er w/Gasket
(1) 30mmx120mm Exhaust Tube with Clamp
(2) 5x20mm SHCS (muffl er mounting)
(1) Electronic Ignition Module w/ Additional Tachometer Lead
(4) 68mm Engine Mounting Standoffs
(1) Isolation Engine Mount
(8) Isolation Mount Grommets
(4) Isolation Mount Spacers (5mmX9mmx15mm)
(8) 5x25mm SHCS (engine mounting)
(4) 5x20mm SHCS (engine mounting)
(4) 5x10mm Washers
(4) 5x19mm Flat Washers
(6) 5x50mm SHCS with 5mm Lock Washers & Flat Washers (propeller mounting)
(1) Silicone Pick-up Wire Cover/Ignition Wire Cover
(1) Red Three Pin Connector Lead w/Pig Tail (for ignition switch)
(2) Three Pin Connector Securing Clips
(1) DLE Decal (not pictured)
Safety Tips and Warnings
● This engine is not a toy. Please place your safety and the safety of
others paramount while operating. DLE will not be held responsible
for any safety issues or accidents involving this engine.
● Operate the engine in a properly ventilated area.
● Before starting the engine, please make sure all components
including the propeller and the engine mount are secure and tight.
It is strongly recommended that a screw sealant is used (Great
Planes
®
Threadlocker GPMR6060) during engine installation.

DLE DLE-85 Specifications

General

Brand	DLE
Model	DLE-85
Category	Engine
Language	English
