9

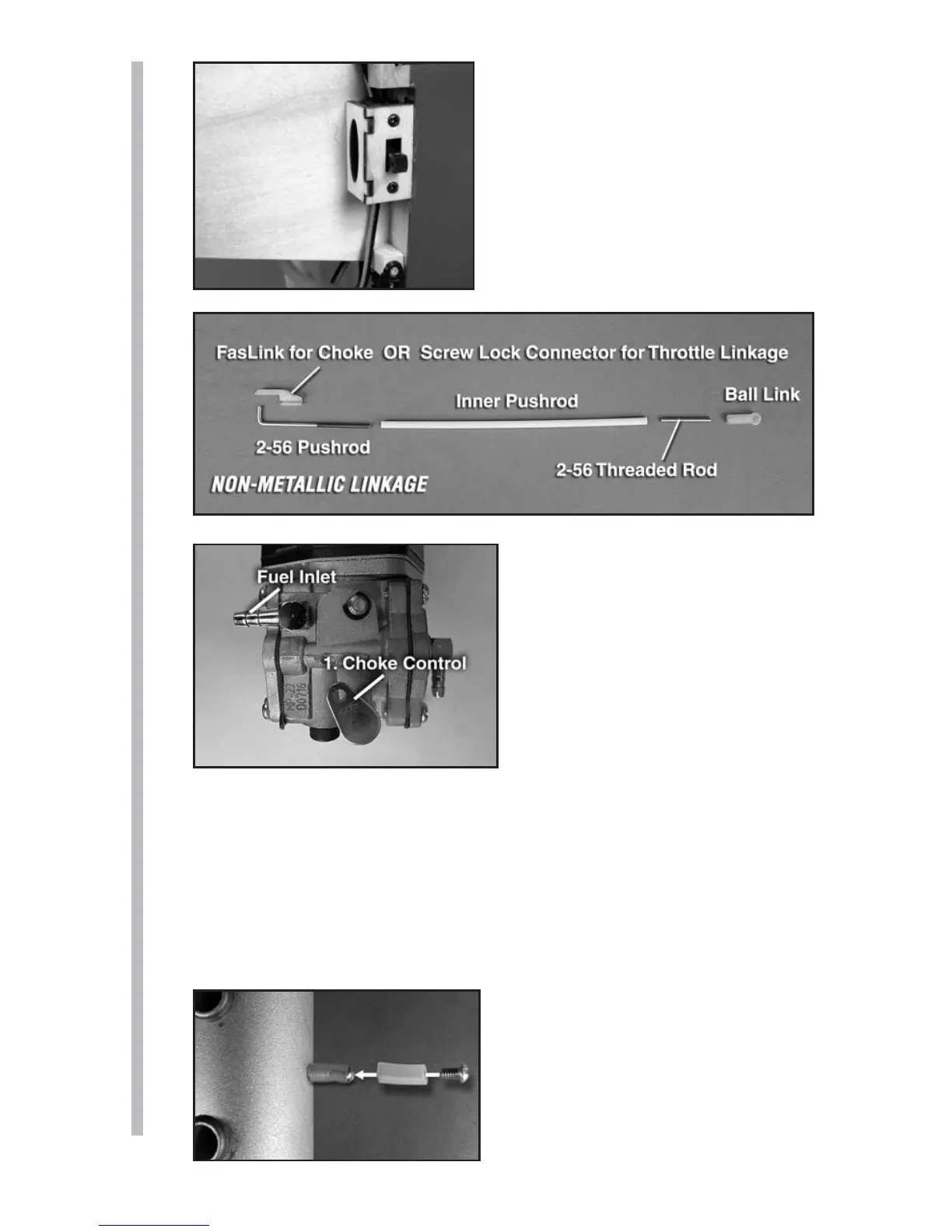

4. Install the manual on/off switch
on the aircraft so that it is easily
accessible from outside the plane.
5. Install the throttle servo at
least 305mm [12"] away from the
engine. Make sure that you get the
carburetor’s full range of rotation
with your servo travel. Be sure to
use a non-metallic linkage.
6. Install the choke servo
(optional) at least 305mm [12"]
away from the engine. Be sure
to use a non-metallic linkage.
7. Install the ignition module se-
curely in the airplane forward
area. It is recommended that
a thin piece of foam rubber is
placed between the module
and the mounting surface and that Velcro
™
strap is used to hold
the module in place.
8. Secure any unsecure connection with heat shrink tubing. (Not
included.)
9. Connect the ignition wire from ignition module to the spark plug.
10. Install the muffl er onto the engine. Be sure to use threadlocker.
11. If not being used, plug the
smoke fi tting on the muffl er with
a segment of fuel tubing and an
8-32 screw (not included).
12. Cut all necessary clearance,
carburetor adjustment, cooling,
and exhaust holes in the cowl.
