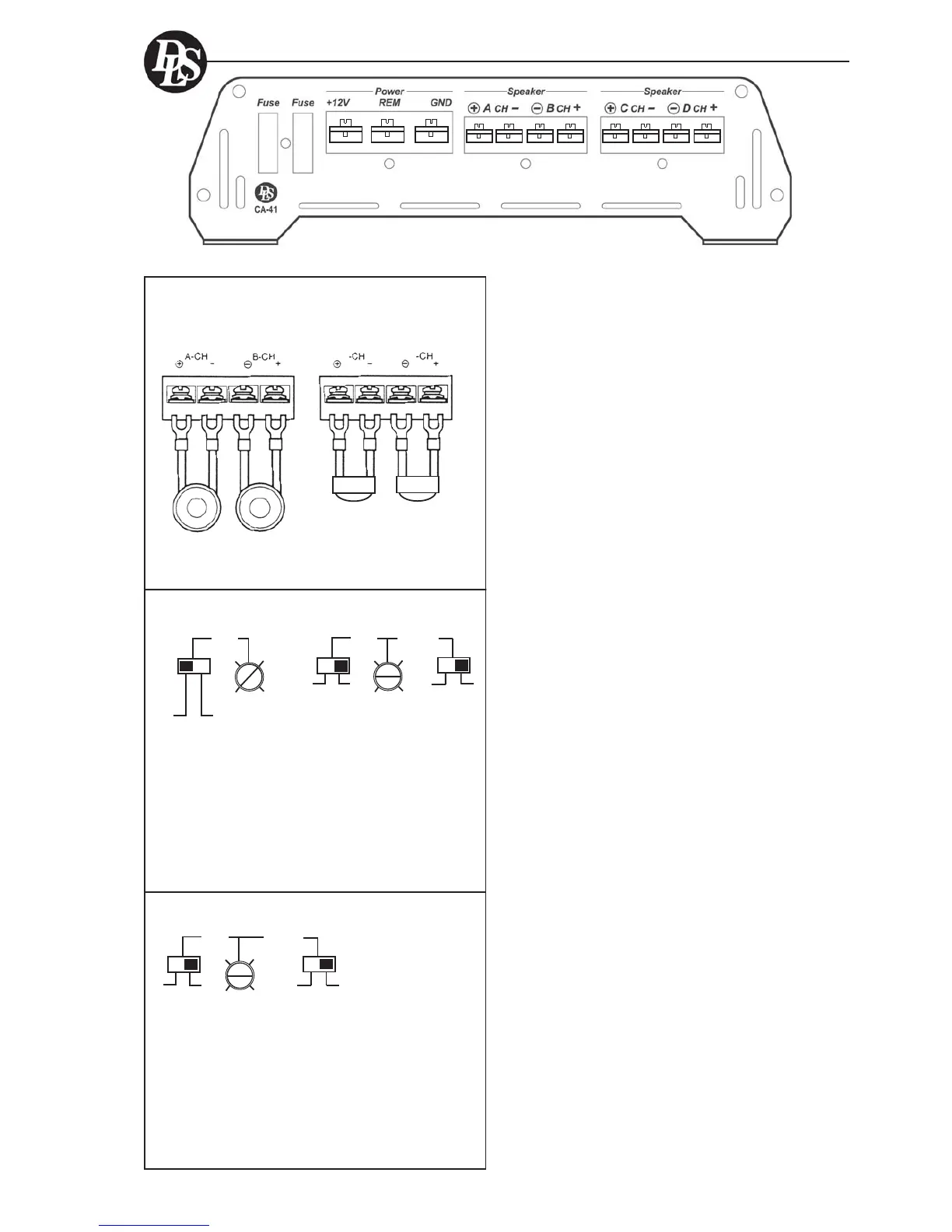

One 2-way speaker system to CA41 using
active crossover between tweeter and
midrange
Midrange Tweeters
CD
Multiply
x1 x10
80/800Hz
Off On
200/2(k)Hz
50/500Hz
500/5(k)Hz
LPF
HPF
Off On
50Hz 220Hz
15Hz
500Hz
Filter settings A/B Channels
Filter settings C/D Channels
We want a crossover point of 4 kHz between tweeter
and midrange. If you for some reason want to limit
the low bass reproduction switch on the HPF-filter.
The typical setting is then around 60 – 80 Hz. Switch
the LPF-filter switch to ON and the Multiply switch
to x10 position. Now you can adjust the filter setting
from 500 Hz to 5 kHz. Adjust the setting to 4 kHz.
Channel C/D are used for tweeters and must be
set to play from 4 kHz and up. The HPF-filter switch
must be ON and the multiply swich in x 10 position.
Now you can adjust the filter setting from 150Hz to
5 kHz. Adjust the setting to 4 kHz.
11
CA41
Speaker wiring CA 41
HPF
50/500Hz 220/2(k)Hz
15/150Hz
500/5(k)Hz
Off On
Multiply
x1 x10
