DLS CCi2 User Manual

CCi2

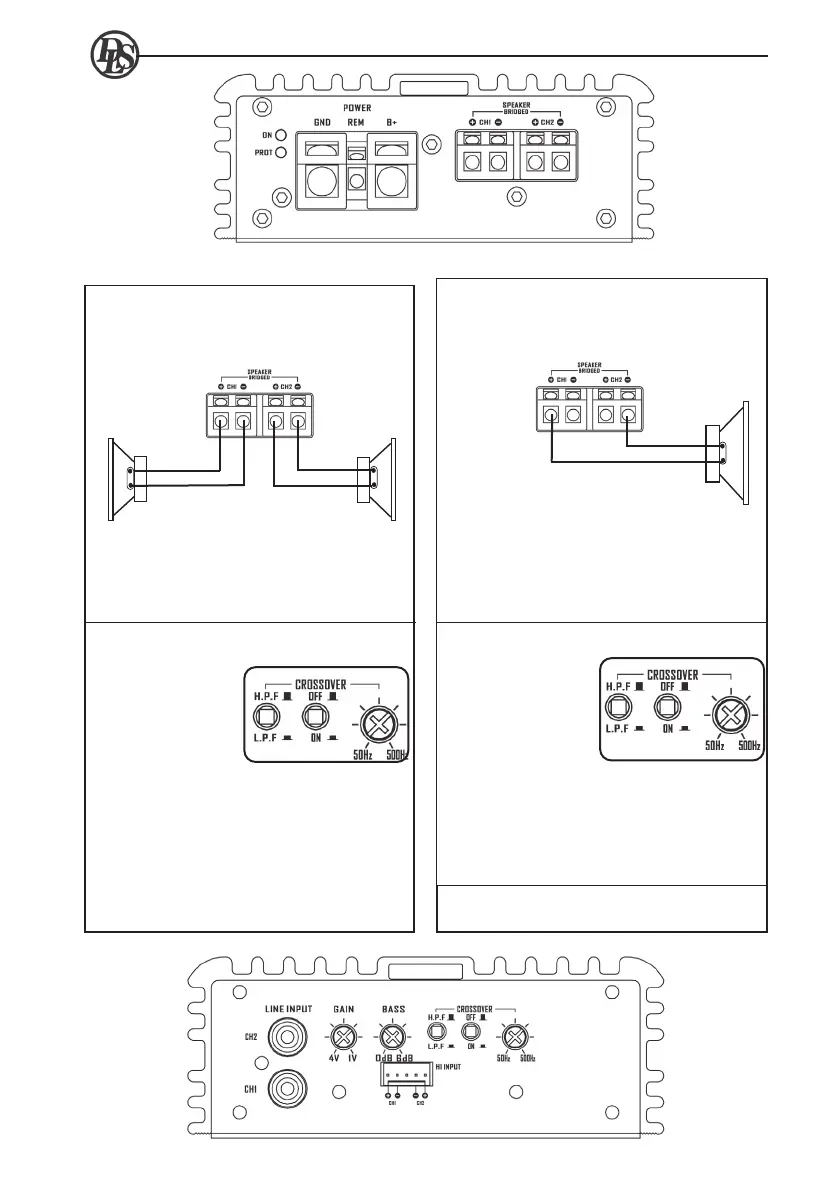

Speaker wiring CCi2
Two fullrange speakers to channel 1 / 2
One 4 ohm subwoofer bridged
7
For power wiring, see page 3-4
For high or low level input wiring, see page 4
NOTE!
Minimum amplifier load is 2 ohm in stereo mode,
lower impedances may damage the amplifier.
The speakers can be coaxial speakers or 2/3-way
kits.
NOTE!
Minimum speaker impedance in bridged connec
-
tion is 4 ohm, this connection gives a 2 ohm load
with a 4 ohm subwoofer (the load is halved when
connected in bridge mode).
Do NOT use subwoofers with lower impedance
than 4 ohm. Connect speaker + to CH1+ and
speaker - to CH2
-.
Filter settings CH 1/2 for 2-channel stereo use
Filter settings CH 1/2 for subwoofer use
+ -
+ -
+ -
The high pass filter
blocks very low fre
-
quencies from reach-
ing the speakers,
mostly used to protect
small speakers from
deep bass.
Set the push button to ON and the HPF / LPF
button to HPF (button OUT) to activate the filter,
or OFF if you want to run the amplifier in full range
mode without limiting the frequency range.
Adjust with the HPF control after your own taste,
a normal setting is 50 - 70 Hz.
The low pass filter is
mostly used for sub
-
woofers. It will allow low
frequencies only and
blocks higher frequen
-
cies. A typical setting is
60 – 70 Hz.
Set the push button to ON and the HPF / LPF but
-
ton to LPF (button IN) to activate the filter, or OFF
if you want to run the amplifier in full range mode
without limiting the frequency range.
