3. Two subwoofers or stereo speakers brid
-
ged to CCi4 / CCi44.
Filter settings front channels CH 1 / 2
Speaker wiring CCi4 / CCi44 / CCi44-40
Filter settings rear channels CH 3 / 4
For power wiring, see page 3-4
For high or low level input wiring, see page 4

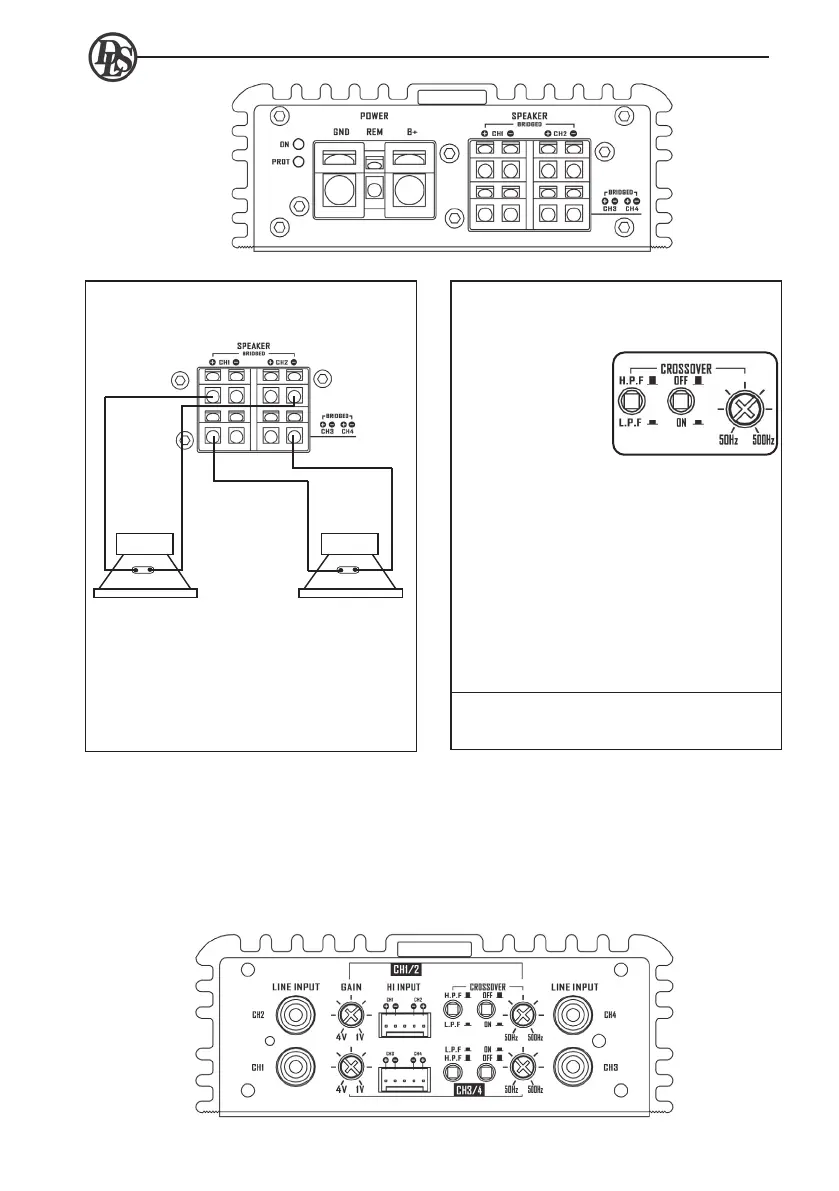

One 4 ohm subwoofer or speaker connected
to channels 1 / 2 and one 4 ohm subwoofer or
speaker connected to channels 3 / 4.
The low pass filter is
mostly used for sub
-
woofers. It will allow low
frequencies only and
blocks higher frequen
-
cies. A typical setting is
60 – 70 Hz.
Set the push button to ON and the HPF / LPF
button to LPF (button IN) to activate the filter.
When the CC-4 is used for bridging a stereo
speaker pair set use only the HPF filter. Set the
push button to ON and the HPF / LPF button to
HPF (button OUT) to activate the filter, or OFF if
you want to run the amplifier in full range mode
without limiting the frequency range.
Adjust with the HPF control after your own taste,
a normal setting is 50-70 Hz.
CCi4 / CCi44 / CCi44-40
4 ohm
+ -
4 ohm
+ -
CCi4 /
CCi44 /
CCi44-40
