DLS CCi2 User Manual

8
2. Two fullrange speakers and one subwoofer
bridged to CC
i4 / CCi44 (3-channel mode).
Filter settings front channels CH 1 / 2

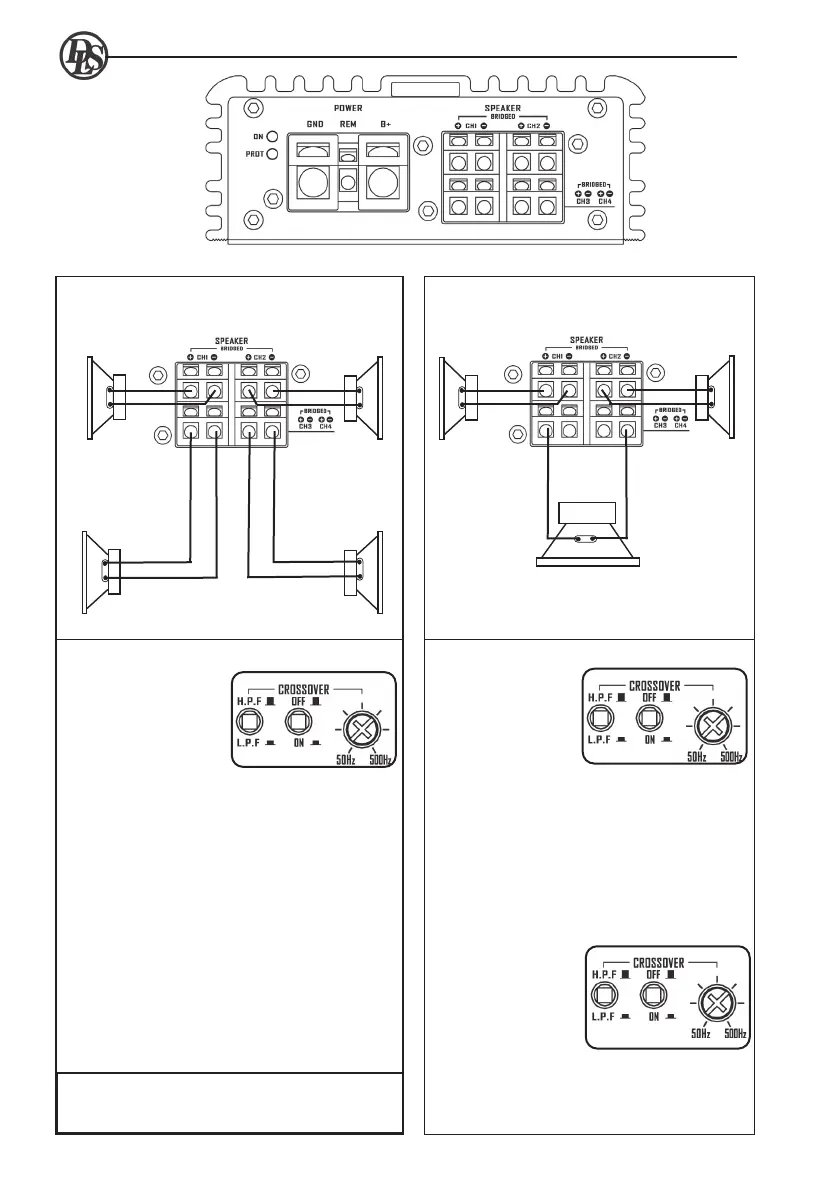

Speaker wiring CCi4 / CCi44 / CCi44-40
1. Four fullrange speakers. One pair
in front and one pair in rear.
Front
speakers
Filter settings front channels CH 1 / 2
Filter settings rear channels CH 3 / 4
CCi4 / CCi44 / CCi44-40
For power wiring, see page 3-4
For high or low level input wiring, see page 4
Rear or front stereo speakers
connected to channels 1 / 2 and subwoofer
to channels 3 / 4.
Rear
speakers
Front and rear stereo speakers
connected to front & rear channels
Filter settings rear channels CH 3 / 4
For the rear channels 3/4 the filter should be ad
-
justed in the same way as for channels 1/2.
4 ohm
+ -
+ -
+ -
Front
speakers
Subwoofer
The low pass filter is
used for subwoofers. It
will allow low frequen
-
cies only and blocks hig-
her frequencies. A typical
setting is 60 – 70 Hz.
Set the push button to ON and the HPF / LPF
button to LPF (button IN) to activate the filter.
The high pass filter
blocks very low fre
-
quencies from reach-
ing the speakers,
mostly used to protect
small speakers from
deep bass.
Set the push button to ON and the HPF / LPF
button to HPF (button OUT) to activate the filter,
or OFF if you want to run the amplifier in full range
mode without limiting the frequency range.
Adjust with the HPF control after your own taste,
a normal setting is 50-70 Hz.
The high pass filter
blocks very low frequen
-
cies from reaching the
speakers, mostly used
to protect small spea
-
kers from deep bass.
Set the push button to ON and the HPF / LPF button
to HPF (button OUT) to activate the filter, or OFF
if you want to run the amplifier in full range mode
without limiting the frequency range.
Adjust with the HPF control after your own taste, a
normal setting is 50-70 Hz.
+ -
+ -
+ -
+ -
