Wall Mounted Installation
Please read and understand these wall mounting instructions before attempting any
fitting of this product
1. Take out the Hook Brackets (x4), wall plugs (x6) & screws (x6).

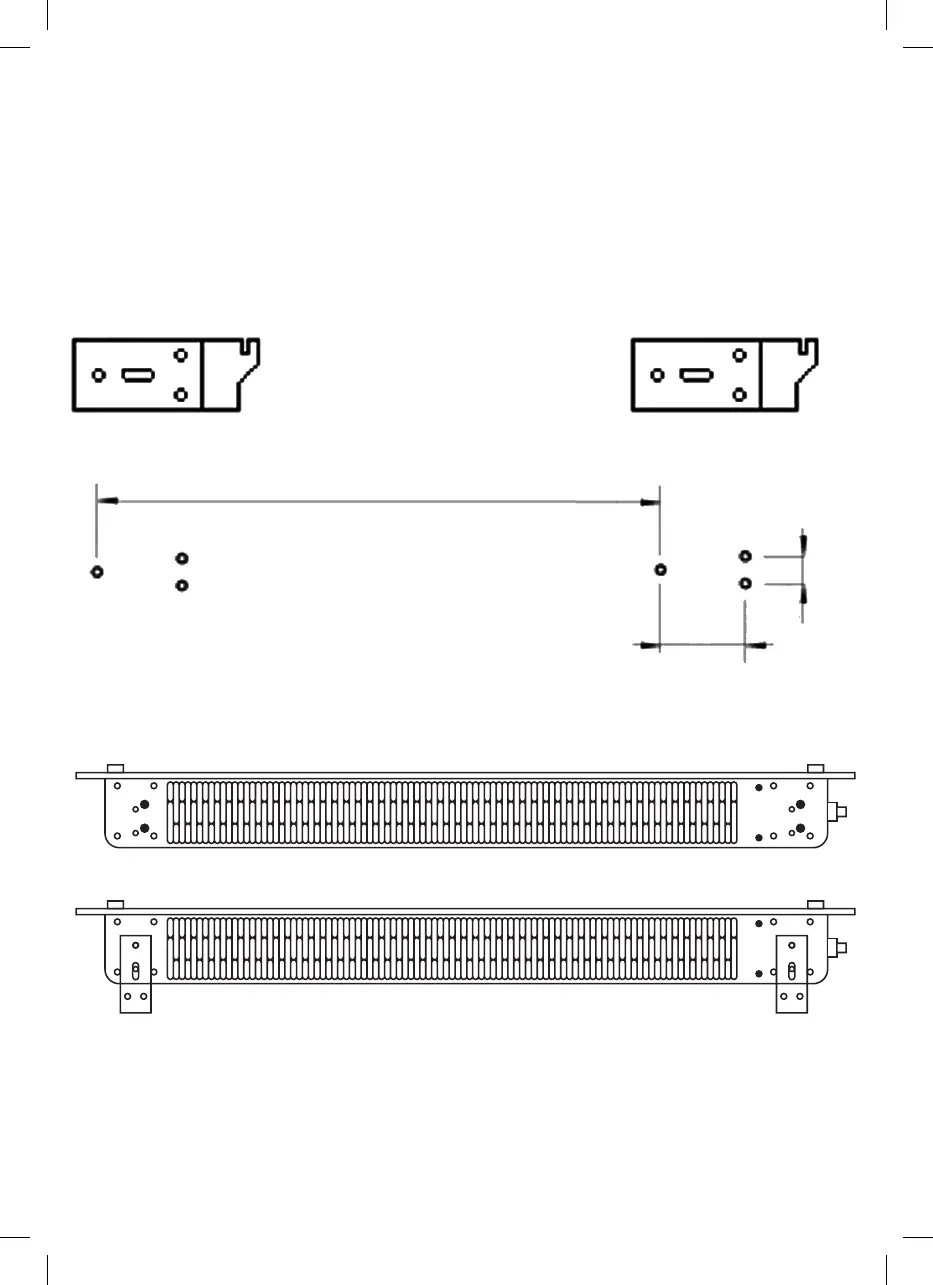

2. Select the unit position for wall mounting and mark the wall using the brackets as a
guide, the measurements are shown below. Fix the 2 brackets to the wall.
3. Fix the remaining 2 brackets onto the bottom of the unit in holes 1 & 2, as depicted
in the picture below using the small screws.
450mm
50mm
16mm
2
1
2
1
