DMG Raffaello 2.8 User Manual

D I S P L A Y
18
2,8"2,8"
PRG
4
PROGRAMMAZIONE • PROGRAMMING
PROGRAMMATION • PROGRAMMIERUNG • PROGRAMACIÓN
Input
Options
?
Floor
Numbers
Display Configuration
Interface
Options
Arrows Configuration
"Car at Floor"
Offset Value
First Visualization
Common Selection
LIP / LOP
COP
Direction
NextDir from Input
No / Yes
-9 /... / 0 / ... / +9
Blank / Zero
Negative / Positive
Show / Hide
Show / Hide
No / Yes
No / Yes
Signal Inputs
Configuration
Filter Blinking Signals
Convert Mezzanine Format
Arrows
Floor Symbols
Graphic
Options
Reset All Settings
Firmware Version
Numbers / Letters
Choose the Numbers / Letters
§ 4.11
§ 4.10
§ 4.7
§ 4.6
§ 4.5
§ 4.4
§ 4.3
§ 4.2
§ 3.2-6
MENU
VOCE DEL MENU
MENU ITEM
SCELTE DISPONIBILI
AVAILABLE CHOICES
§ 4.12
Classic Bold / DMG Style / Bourbon / Arial RoundedFont
§ 4.8
Black / Pacific Blue / Navy Blue / Reef Blue / Light Gray
White / Orange / Red
Flat
Style
Alternating / FixedMessage Mode
Landscape (Horiz.) / Portrait (Vert.)
Rev. Landscape / Rev. Portrait
Orientation
§ 4.9
White / Red / Orange / Blue / Gray / Black
White-Green / White-Lilac / Purple-Yellow
White-Gray
Galaxy / Ocean Dream 2/1 / Reef Blue
Purple Haze / Red Passion
Gradient Style
Background color
Symbol color
Specials
§ 3.7
1 wire per floor /
Gray / Binary / Pos. Sensor (Manual)
Pos. Sensor (Auto) / TKE / MEA / Autinor
1 wire per segment
CAN DMG
Tasti di navigazione menu • Navigation menu keys
Touches de navigation du menu • Tasten für die Menünavigation • Teclas de navegación menú
Tasto di scelta valore
Set-up key
Touche de choix de la valeur
Taste für die Auswahl eines Werts
Tecla de elección valor
Memorizzazione valore (> 3 secondi)
Value setting (> 3 seconds)
Sauvegarde valeur (> 3 secondes)
Angabe-Speicherung (> 3 Sekunden)
Memorización valor (> 3 segundos)
Tasto di accesso al menu
Access menu key
Touche de accéder du menu
Taste für Zugang zum Menü
Tecla de acceso menú
EXIT / BACK

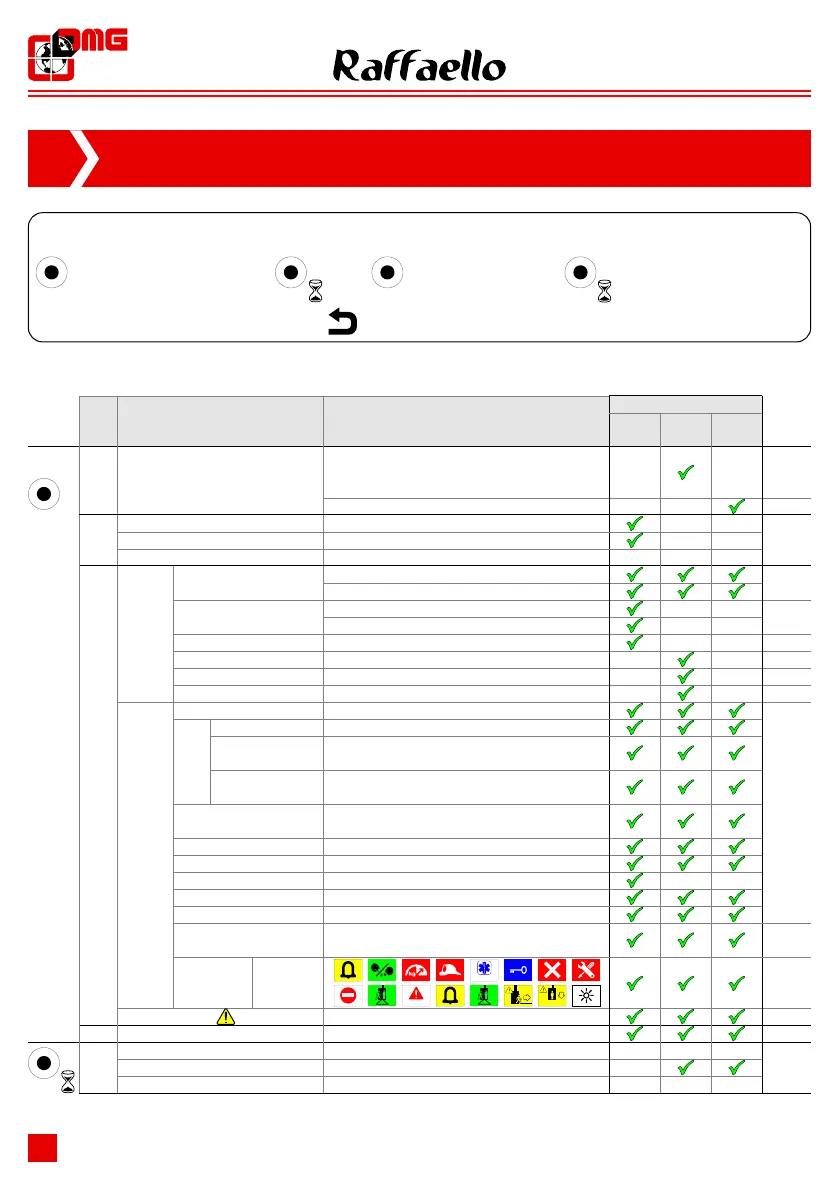

MENU map
INGRESSI / INPUTS
DMG
Serial
Parallel
CANBUS
CODE BLUE
ERROR
ADV ADV PRG PRG
PRG
Input
S1 / S2 / S4
Audio
Settings
Gong Volume
Buzzer Enable OFF / ON
0-OFF / 1-MIN / 2 / 3 / 4-MAX
§ 4.1
Discesa in emergenza
Mantenere la calma
