DMTech FP9000L-2 - Page 8

Instructions for installation, setup and operation - FP9000L-2/4/6/8
Page 8 of 16

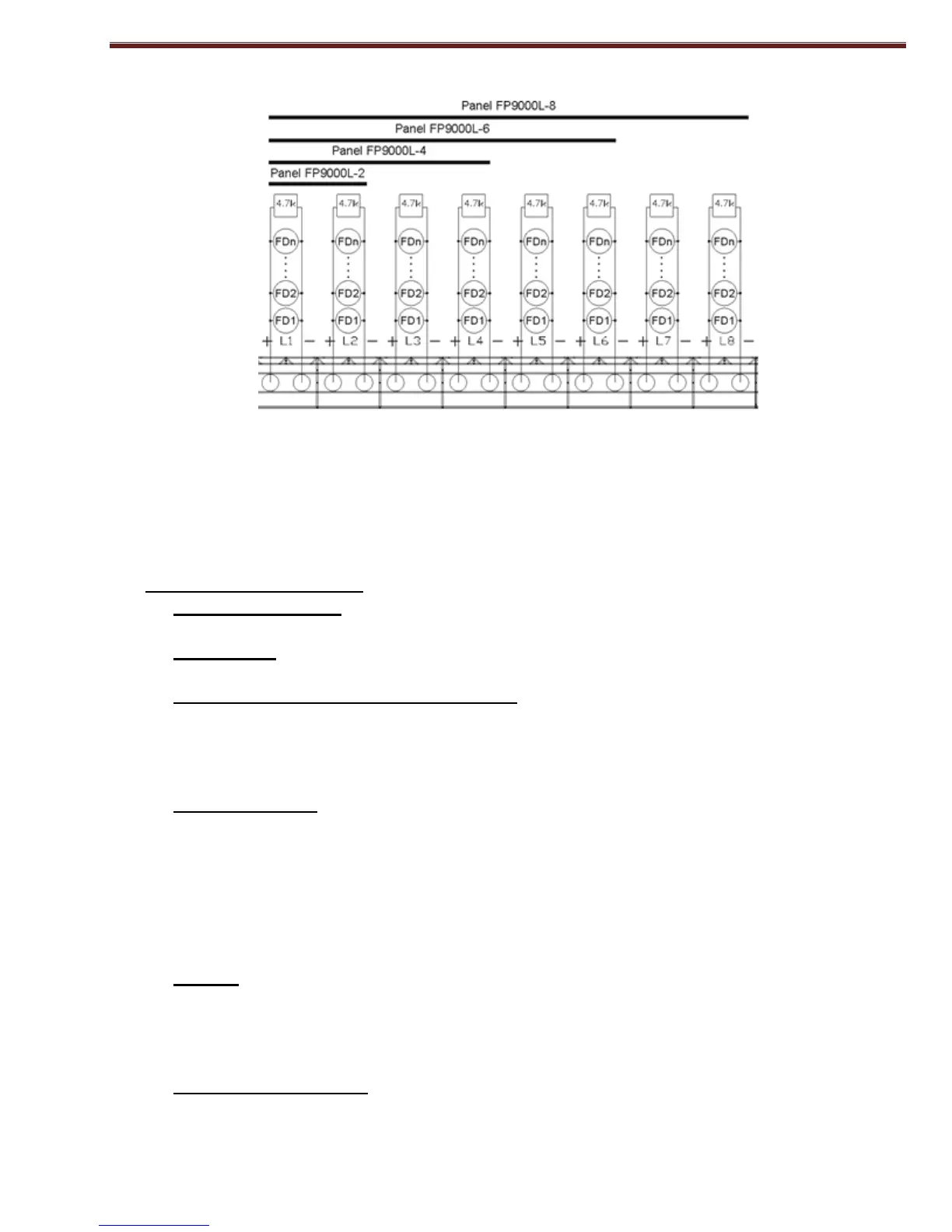

Fig.1
One line can allow the installation of up to 32 Fire detectors generally, regardless of their type.
To the unused lines, directly to the terminals mount the final element "EOL", otherwise the lines
will be able in Fault condition.
 FIRE LINES - Parameters.
 Current interruption
The factory setting is 4 mA.
 Current Fire
The factory setting is 16 mA.
 Current Fire-direct /without delay outputs/
The factory setting is 40 mA.
- It is used to distinguish between MCP and automatic fire detector.
- If a MCP to make alarm state over 40mA, the panel will recognize it and will include
sirens without delay.
 Number of checks
The factory setting is for 2 checks.
- After the first activation, the panel resets the line for 3 seconds and awaits a second
response in the next 60 seconds. If there is a response in this period the panel enters Fire
condition.This setting is recommended for lines with automatic Fire detectors the aim of
ignoring false alarms.
 Outputs
The panel has 3 outputs built in alarm mode.
- 2 controllable relay outputs for sirens
- 1 relay output C/NC/NO*
 Additional relay outputs
Add module M9000R. The module has 2,4,6 or 8 relays. Accordingly, for plants FR9000L
2/4/6/8, mounted modules M9000R-2/4/6/8.
