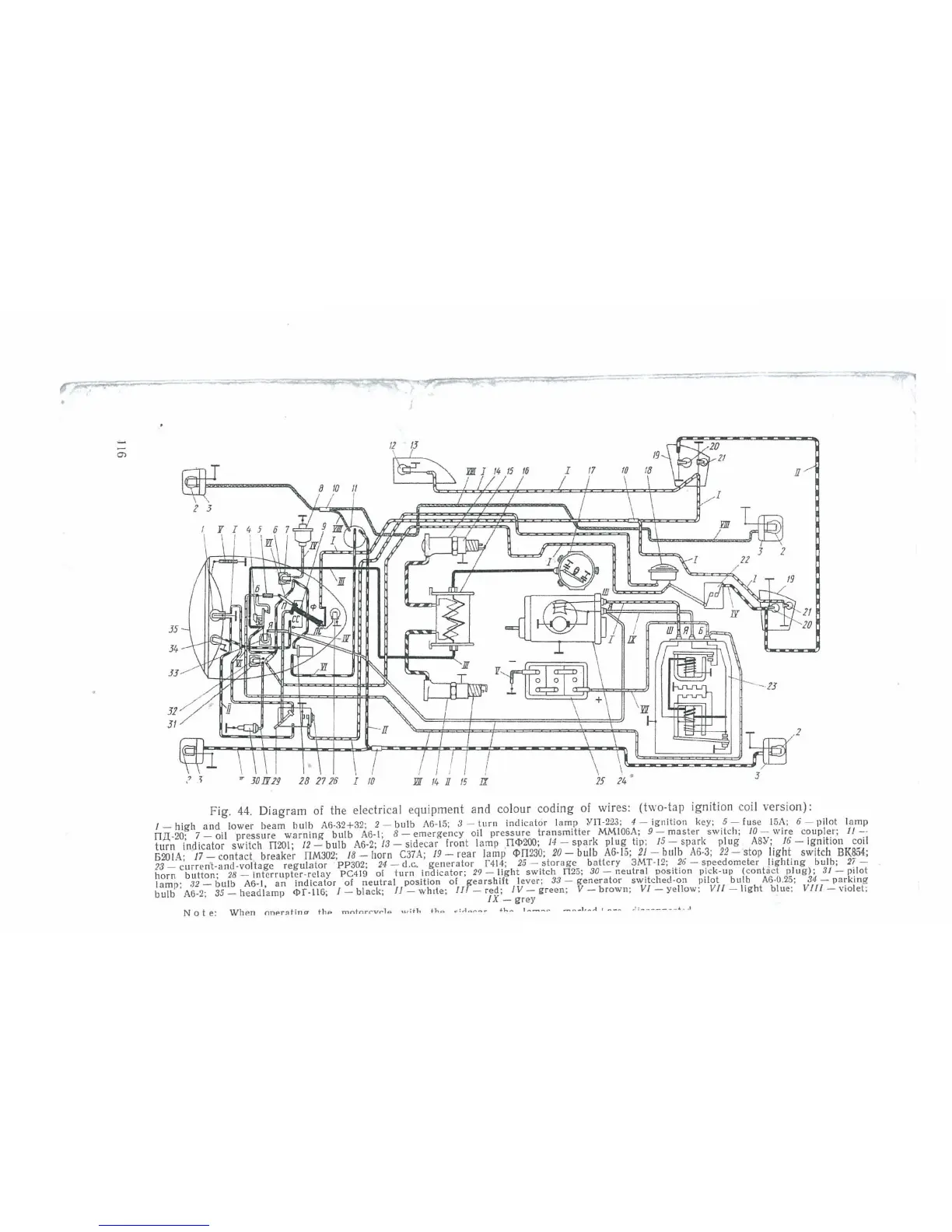

fig. 44. Diagram of the electrical equipme nt and colour coding of wires: (two-tap ignition coil version):
I - high and lower beam bulb A6·32+32; 2 - bulb !16-15; 3 - t urn indi ca tor lamp Y ll-2 23; 4- ignition key; 5- fuse 15A; 6 - pilot lamp
11L( -20 ; 7- oil pressure warning bulb A6-l; 8- emerge n cy oil pressure tr ansmitter MM106A; 9- master switch; 10 - wire coupl er; II - -
turn indi cato r switch 11201; 12 - bulb A6-2; 13- sidecar front l amp 11<1>200; 14 - spark plug tip; 15- spark plug A8Y; 16- ignition coil
5201A; 17- contact break er 11M302; 1 8- horn C37A; 19- rear l amp Cl>n230; 20- bulb A6-15; 21 - bulb AG-3 ; 22- stop light switch B((854;
23 - currerit-and-voltage r eg ul ato r PP302; 24 - d. c.. ge n erator f414; 25 - sto ra ge battery 3MT-12; 2 6- speedometer lightin g bulb; 2/-
horn button; 28 - intcrrupter 4 rclay PC419 of turn indicator; 29- light switch n2 5; 30- neutral position pick
4
up (contact plug); 3/ - pilot
lamp; .12- bulb A6·1, an indicator of neutral pos.ition of fearshift lever; 33- generator swit checl
4
on pi lot bulb A6·0.25; 34- parkin g
bulb A6-2; 35- head lamp ct>f-116; I- black; II- whrte; /J - re~; IV -11reen; V- brown; VI- yellow; V/J - ligh t blue; VIII- violet:
IX- grey
N 0 t e: When nnPr:-~tina thP l'Tintnr-rvrl.,. u rit J, ~ .... "" .,;~ !.. ....... .. • ...... ,..,........... .....~-! .... ~ ' --~
