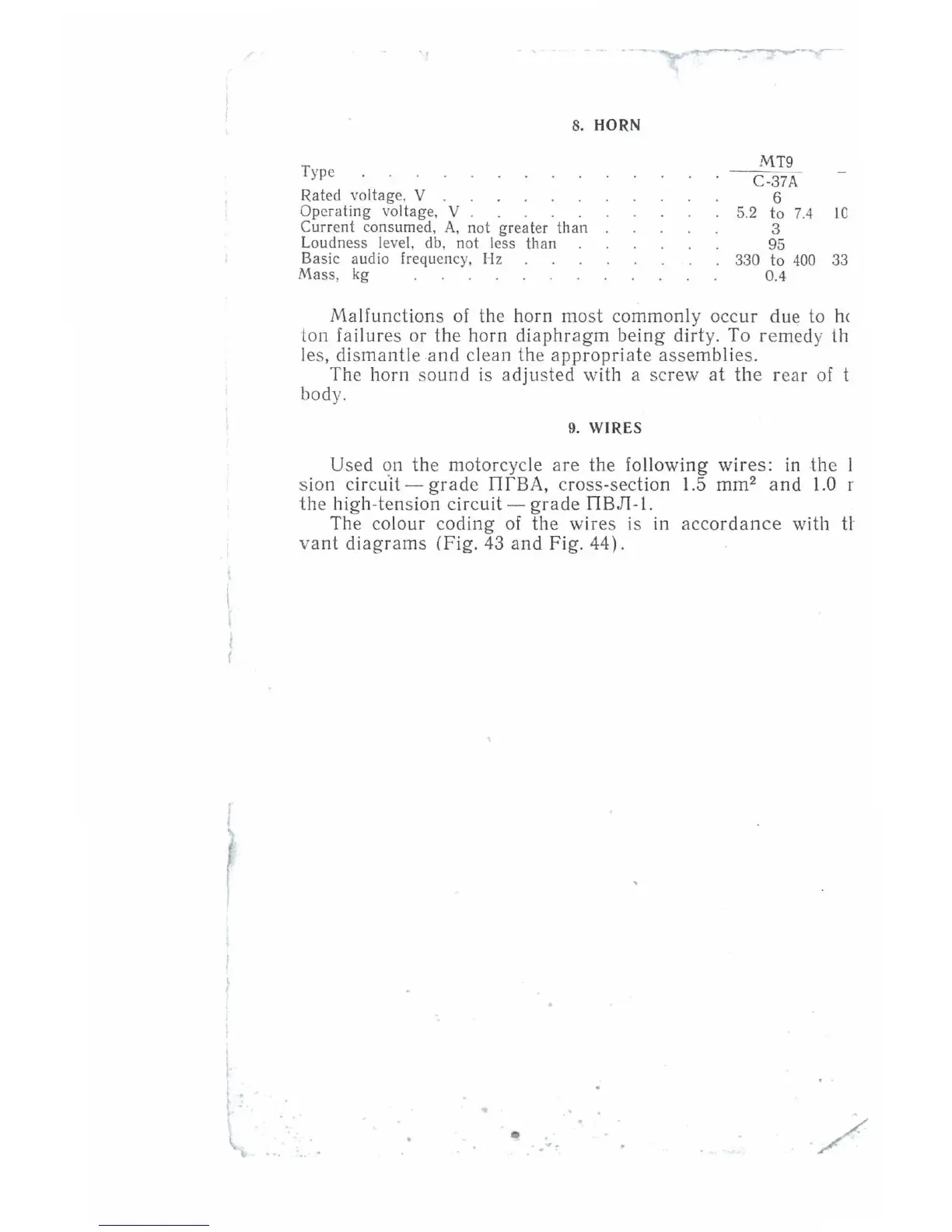

8. HORN
Type
Rated voltage, V .
Operati ng voltage, V . . . .
Current co nsumed, A, not greater than
Loudness level, db, not less than
Basic audio frequency, Hz
Mass, kg
MT9
~7A
6
5.2 to 7.4 10
3
95
330 to 400 33
0.4
Malfunctions of the horn most commonly occur due to h<
ton failures or the horn diaphragm being dirt y. To remedy lh
les,
dismantle and clean the appropriate assemblies .
The horn soun d is adjusted with a sc rew at the rear of t
body.
9. WIRES
Used on the motorcycle are the following wires: in the I
sio n circu . it- grade TifBA, cross-section 1.5 mm
2
and 1.0 r
the high - tension circuit- grade TIBfl-1.
The col our coding of the wires is in accordance with n
van t diagrams (Fig. 43 and Fig. 44) .
..
•
. ..
