6. Operation and Function Introduction
6.1 Power Supply
◆ DC Power: Connect the power adapter to a 110V or 220V out-
let, then connect the terminal to machine’s DC12V input socket.
◆ Lithium Battery (optional): When the battery was fully charged,
the machine can work without power adapter.
6.2 Turn on/off the machine
Turn the power switch on from the rear, machine will start self testing.
If the test is successful, the sheets display window will show the soft-
ware version. Next two “0” will respectively be showed on display win-
dow. In this mode, the detector is ready for using. (see Figure 1)
Turn the switch off to turn off machine.

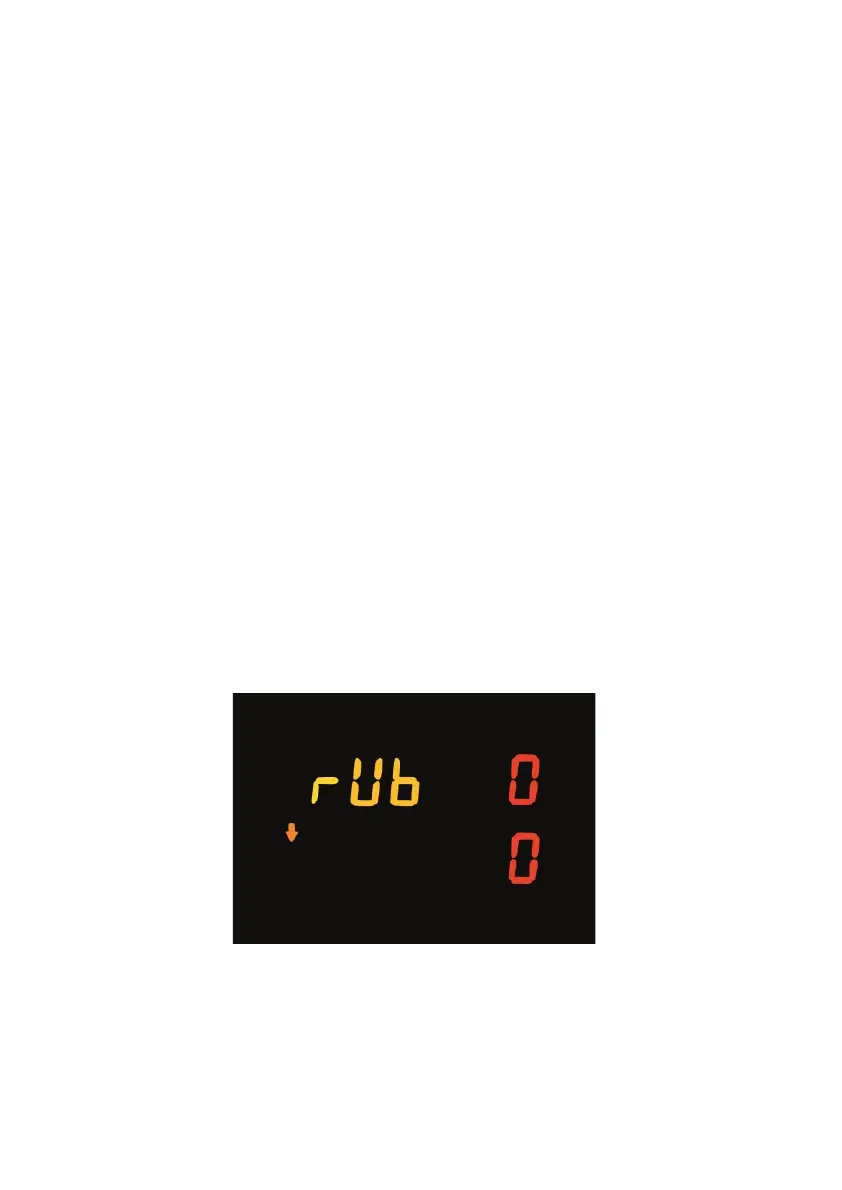

Figure 1
9
