DOD MEATBOX - DOD Meatbox SubSynth Controls and Operation; Octave Control; Output and Sub Harmonic Controls; Low Frequency Control and Safety Warning

1 2
3 4
5
6
8
7

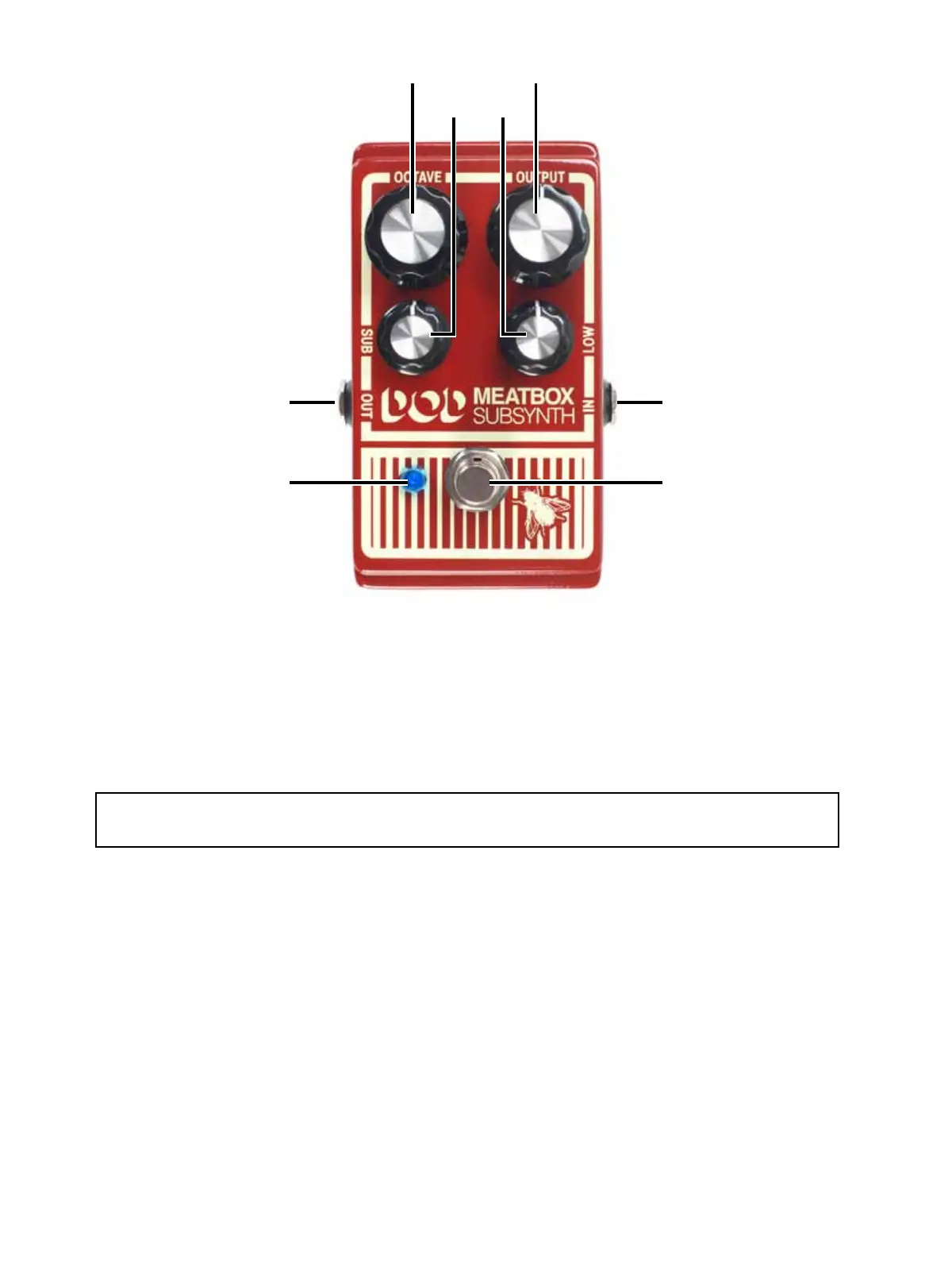

1. OCTAVE - adjusts the amount of low octave being added to the signal.
2. OUTPUT - adjusts the overall output level of the eect.
3. SUB - adjusts the amount of synthesized sub harmonic eect is added to the signal.
4. LOW - adjusts the low frequency content of the overall eect.
WARNING: Start with the OUTPUT and LOW controls at minimum and gradually increase
their level to avoid possible speaker damage.
5. INPUT - connect your instrument here.
6. FOOTSWITCH - turns the eect on and o.
7. LED - turns on when the eect is enabled.
8. OUTPUT - connect to the next pedal input or to the input of your amplier. This output
allows you to route a dry unprocessed signal (Ring) and processed signal (Tip)
to an amplier and other eects simultaneously via TRS ‘Y’ cable.
Tip = Octave+Sub
Ring = Dry
Sleeve = Ground
