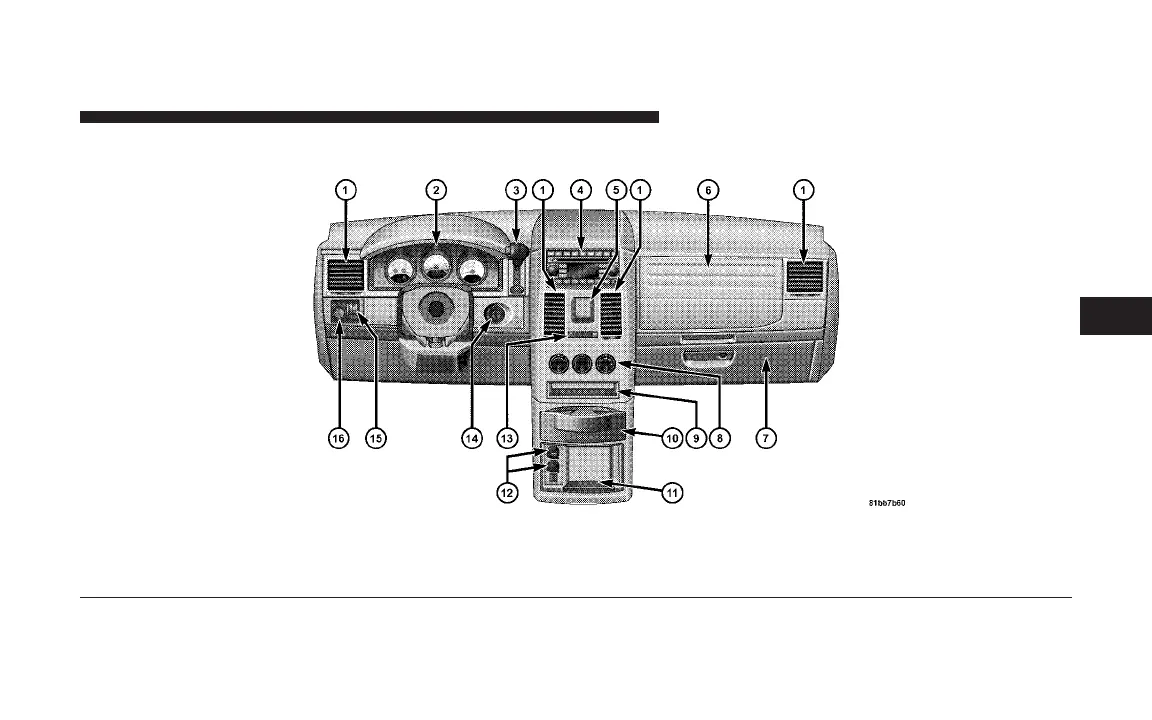

INSTRUMENT PANELS AND CONTROLS
1 - Air Vent 5 - Cubby 9 - Cubby or DVD System 13 - Hazard / Switch Panel
2 - Instrument Cluster 6 - Upper Glove Compartment 10 - Pull out cup holder 14 - Wireless Ignition Node
3 - Transmission Shifter 7 - Lower Glove Compartment 11 - Storage Cubby 15 - Dimmer Switch
4 - Radio 8 - Climate Controls 12 - Power Supply 12 Volt 16 - Head Light Switch
UNDERSTANDING YOUR INSTRUMENT PANEL 219
