3. Install the bulb and connector assembly into the fog
light housing and rotate the connector
1
⁄
4
turn clockwise
to lock it in place.
Rear Tail, Stop, Turn Signal, Side Marker and
Backup Lights
1. Raise the liftgate.
2. Remove lamp by removing two 10 mm bolts from the
inboard side. Use a fiber stick or similar tool to gently pry
the lamp on the outboard side to dislodge tow ball studs.
NOTE:
•
If a screwdriver is used, make sure a soft material is
placed between boy and tool so not to scratch the
paint.

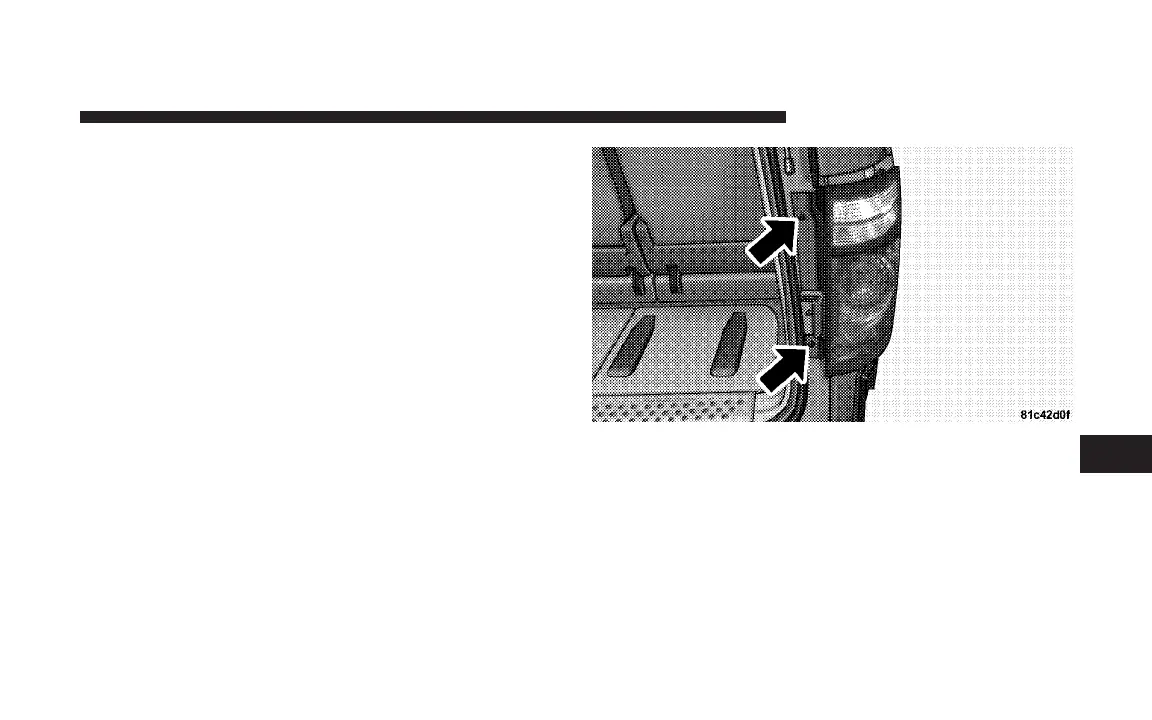

Remove two 10 mm bolts
MAINTAINING YOUR VEHICLE 455
7
