SERVICING AND MAINTENANCE 309
Rear Interior Fuses
There is also a power distribution center located
in the trunk under the spare tire access panel.
This center contains fuses and relays. Fuse
cavity location and descriptions are printed on
the inside of the power distribution center
cover.

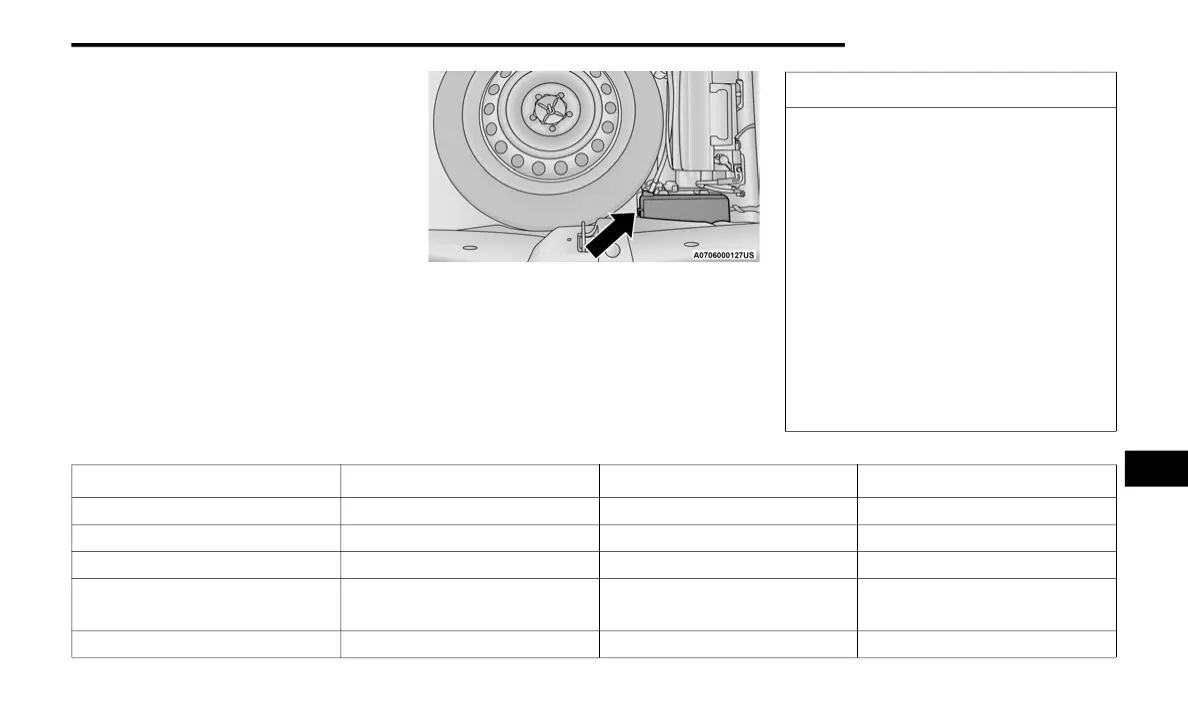

Rear Power Distribution Center
CAUTION!
When installing the power distribution
center cover, it is important to ensure the
cover is properly positioned and fully
latched. Failure to do so may allow water to
get into the power distribution center and
possibly result in an electrical system
failure.
When replacing a blown fuse, it is important
to use only a fuse having the correct
amperage rating. The use of a fuse with a
rating other than indicated may result in a
dangerous electrical system overload. If a
properly rated fuse continues to blow, it
indicates a problem in the circuit that must
be corrected.
Cavity Cartridge Fuse Mini-Fuse Description
F2 60 Amp Yellow – Front PDC Feed #1
F3 – – Fuse – Spare
F4 60 Amp Yellow – Front PDC Feed #2
F5
30 Amp Pink
20 Amp Blue – Police
– Sunroof/Dome Lamp – Police
F6 40 Amp Green – Exterior Lighting #1
8
