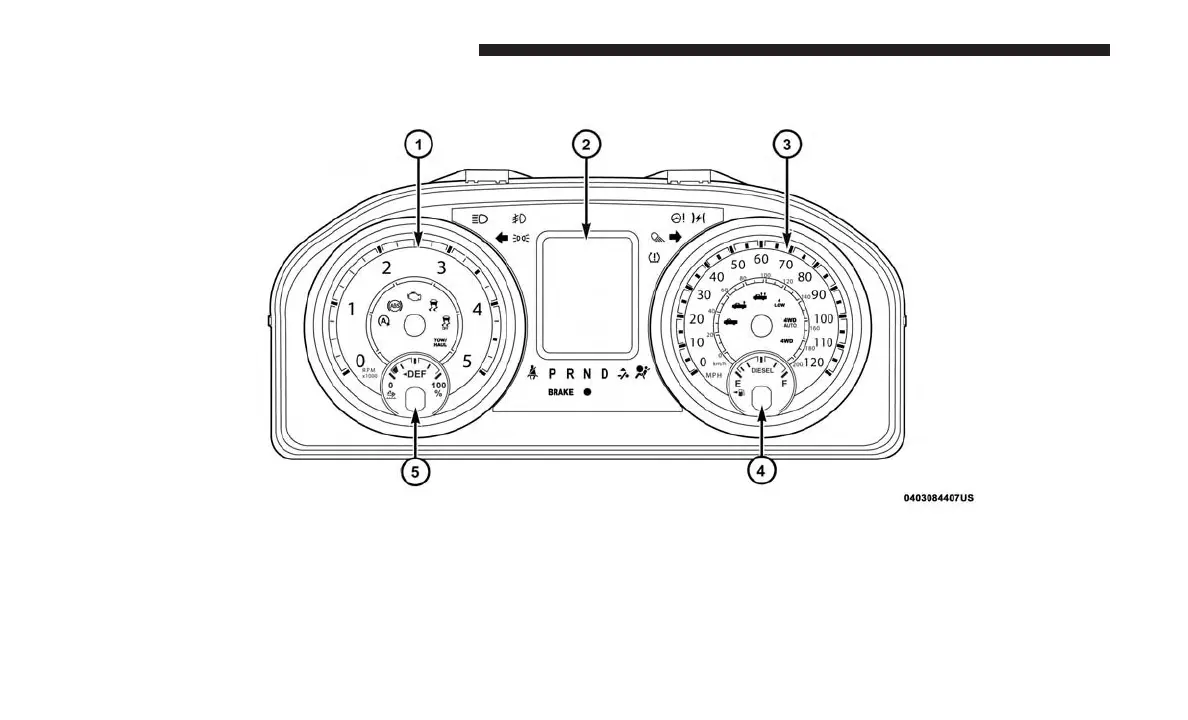

INSTRUMENT CLUSTER

1. Tachometer

• Indicates the engine speed in revolutions per minute

(RPM x 1000).

2. Instrument Cluster Display

• When the appropriate conditions exist, this display

shows the Instrument Cluster Display messages. Refer

to “Instrument Cluster Display” in “Understanding

Your Instrument Panel” for further information.

Instrument Cluster

14 UNDERSTANDING YOUR INSTRUMENT PANEL
