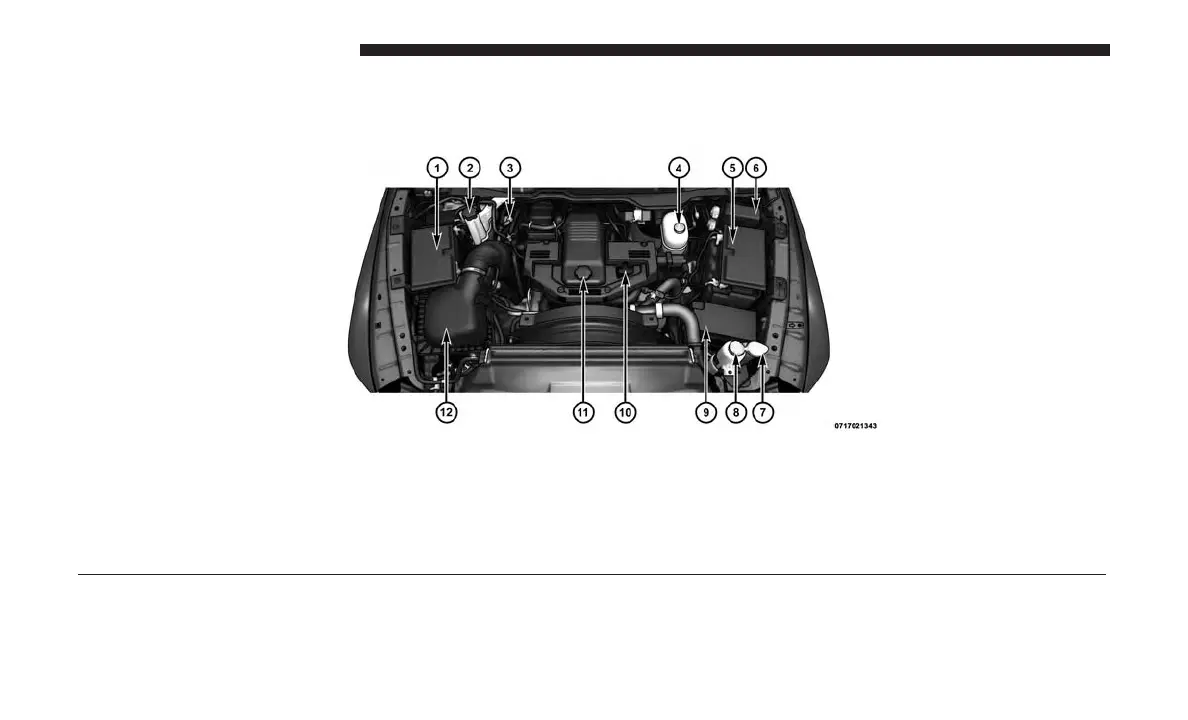

ENGINE COMPARTMENT — 6.7L DIESEL — SIX-SPEED 68RFE (2500/3500 Models)

1 — Battery 7 — Washer Fluid Reservoir

2 — Engine Coolant Reservoir 8 — Power Steering Fluid Reservoir

3 — Automatic Transmission Dipstick 9 — Power Distribution Center

4 — Brake Fluid Reservoir 10 — Engine Oil Dipstick

5 — Battery 11 — Engine Oil Fill

6 — Aux Power Distribution Center 12 — Air Cleaner Filter

174 MAINTAINING YOUR VEHICLE
