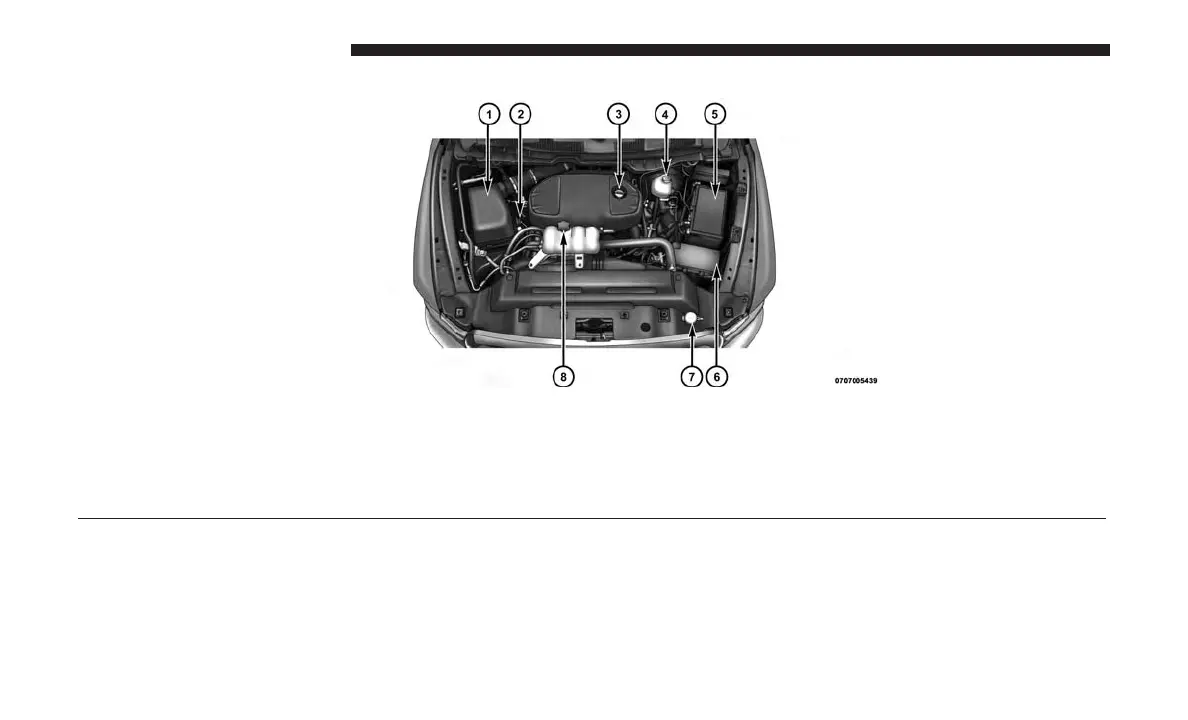

ENGINE COMPARTMENT — 3.0L DIESEL

1 — Air Cleaner Filter 5 — Battery

2 — Engine Oil Dipstick 6 — Power Distribution Center (PDC)

3 — Engine Oil Fill 7 — Washer Fluid Reservoir

4 — Brake Fluid Reservoir 8 — Engine Coolant

54 MAINTAINING YOUR VEHICLE
