Dodge RAM 2017 - Air Cleaner Filter; Open Air Cleaner Filter Assembly; Engine Air Cleaner Filter Installation

To Next Page

To Previous Page

3. Remove the air cleaner filter element from the housing

assembly.

Engine Air Cleaner Filter Installation

NOTE: Inspect and clean the housing if dirt or debris is

present before replacing the air filter element.

1. Install the air cleaner filter element into the housing

assembly with the air cleaner filter inspection surface

facing downward.

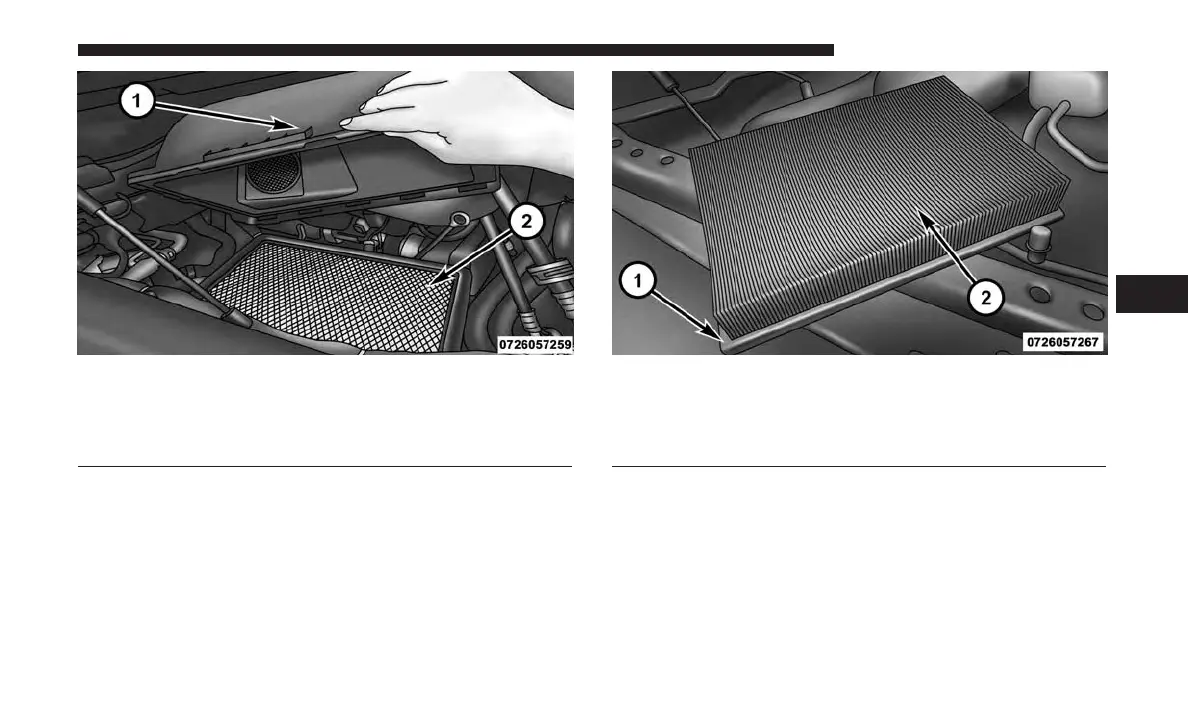

Open Air Cleaner Filter Assembly

1 — Air Cleaner Cover

2 — Air Cleaner Filter

Air Cleaner Filter

1 — Air Cleaner Filter

2 — Air Cleaner Filter Inspection Surface

MAINTAINING YOUR VEHICLE 59
