DOF Reality H3 - Upper Frame Assembly

Assembly Instructions DOF Reality H3 and P3
6
2. Upper frame DOF Reality
These steps are the same for all platforms. There can be some small deviations for left or righthand
driving, DirectDrive wheels as well as optional HOTAS side mounts.

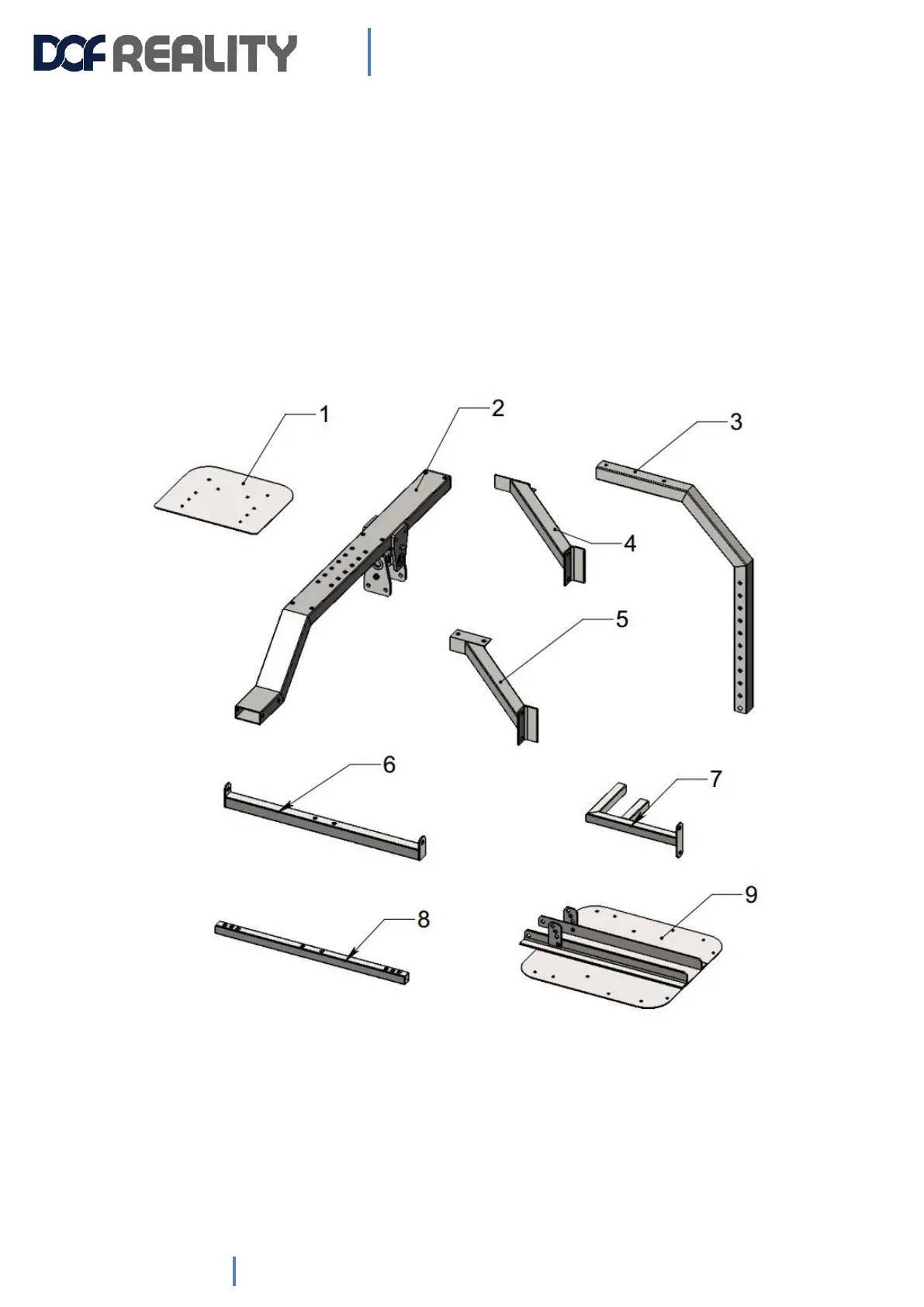

Parts needed:
1. – wheel plate, 2. – main rail, 3. – wheel support(2 pcs.), 4. – wheels support mount(left), 5. –
wheel support mount(right), 6. – main motors arms mount, 7. – shifter support, 8. – Seat
mounts bars(2pcs.), 9. – pedals stand.
