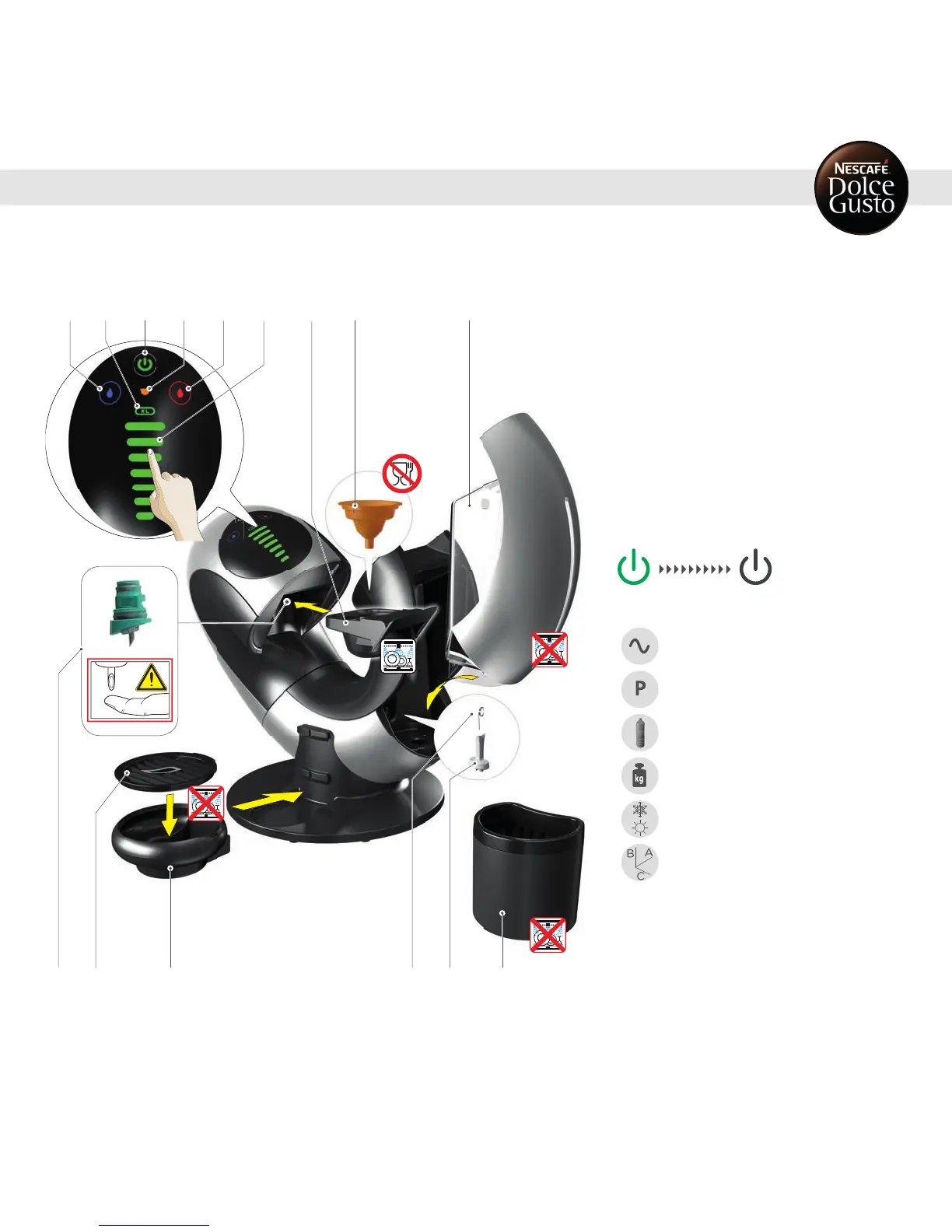

Dolce Gusto ECLIPSE - Machine Overview

17/23mm
4 5 61
10 11 13 1412
2 73 8 9
15
1.
Cold water icon
2.
XL volume function
3.
ON/OFF icon / Descaling signal / Error signal
4.
Used capsule icon
5.
Hot water icon
6.
Touch volume selector / Bar display
7.
Capsule holder
8.
Rinsing tool
9.
Water tank
10.
Injector
11.
Drip grid
12.
Drip tray
13.
Cleaning needle
14.
Injector tool
15.
Capsule bin
ECONOMY MODE:
After 5 minutes of non-usage.
TECHNICAL DATA
AU/GB
220-240 V, 50/60 Hz, 1340-1600 W
max. 15 bar
1 L
~3.5 kg
5–45 °C
41–113 °F
A = 27.4 cm
B = 34.6 cm
C = 33.2 cm
2. MACHINE OVERVIEW
5
