DOLMAR GmbH
1
4
3
2
3
12
5
6
8
7
11
10
9
5
13

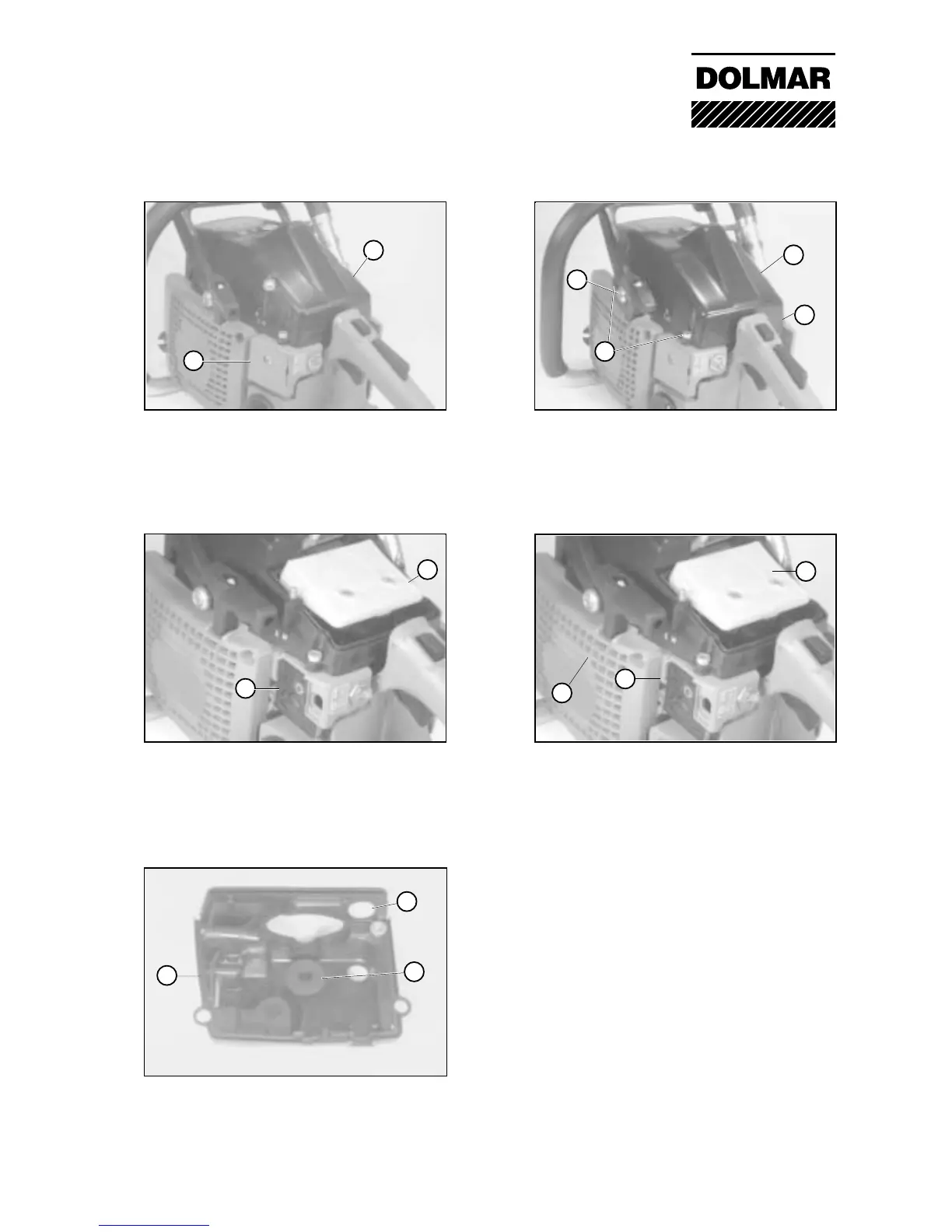

07 Cover system, air filter
07-01 Removing the air filter cover
For cleaning the air filter, remove cover (1).
For cleaning the auxiliary filter, remove cover
(4).
07-01 Removing the cover
In case of model 109 cover assembly (2) must
be removed to clean the air filter. For this
purpose remove lever attachment screw (12)
and the three cover attachment screws (3).
07-03 Cleaning the air filter
Remove auxiliary filter (5) and unscrew the
main filter (6).
07-03 Cleaning the air filter
To clean the main filter, separate the upper (7)
and the lower part (8).
07-06 Removing the bottom part
Following the removal of the carburettor, the
bottom (11) can be removed. Integrated into
the bottom are: - plug (9) for the winter heating
system - ventilation bore/seal (10) for the
carburettor control side.
