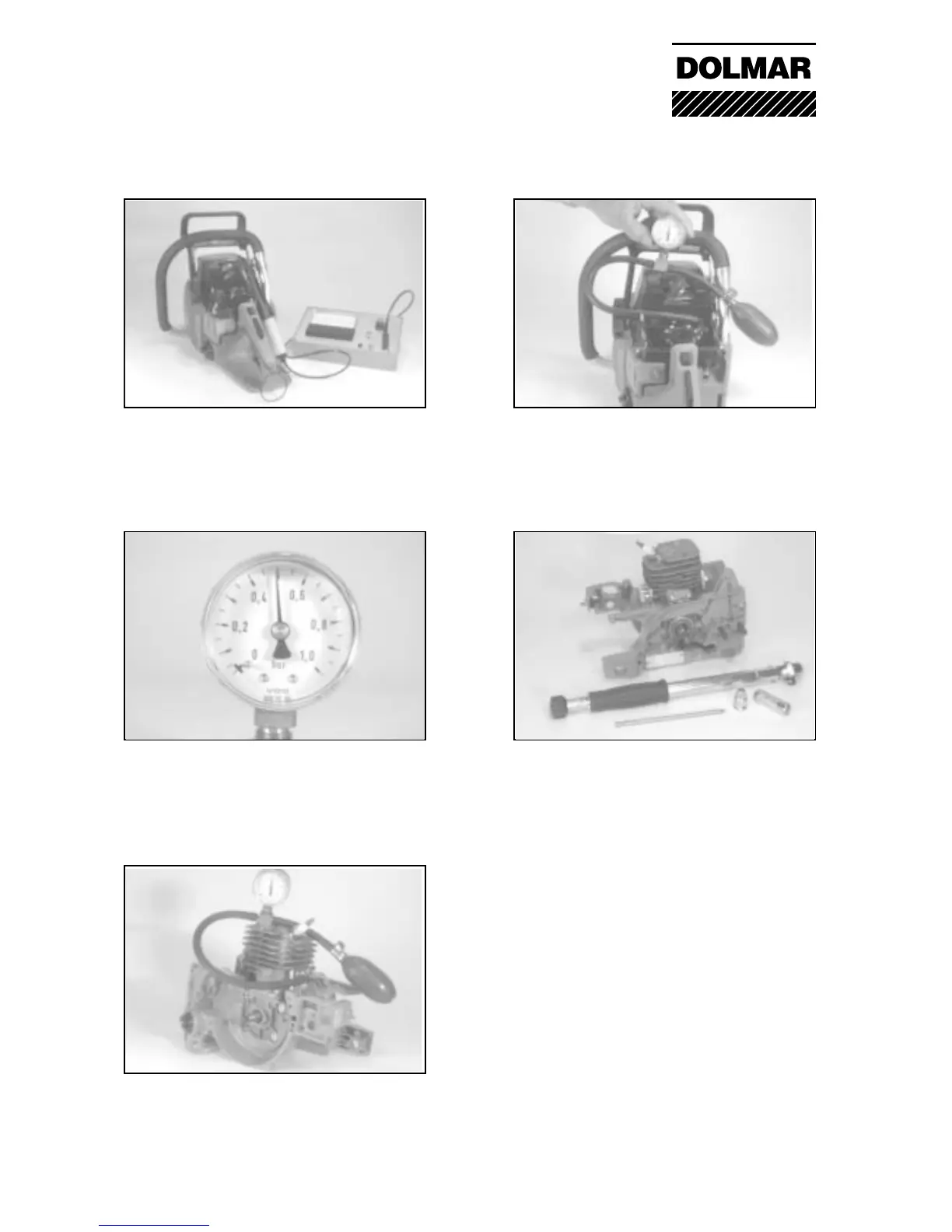

12 Checking operations
12-02 Checking the ignition system
Use tester no. 956.010.300 for checking the
ignition system / spark plug.
12-03 Checking the carburettor
For in-situ checking of the carburettor sepa-
rate the fuel pipe from the connection nipple.
Fit pressure tester no. 965.004.000 to the
connection nipple.
12-05 Checking the crankcase with cylinder
For pressure-testing the crankcase blank off
the exhaust duct using flange no. 944 603 030.
Screw flange no. 944 603 020 to the inlet duct.
12-03 Checking carburettor and crankcase
Pressure-testing of the carburettor or
crankcase is to be performed at max. 0.5 bar.
12-04 Use a torque wrench for tightening
screwed connections
Cylinder base screw, crankcase screws,
silencer screws, the flywheel nut and the
clutch hub, must be tightened using the
prescribed torque.
