Dolmar PS-460 - Component Identification; Parts Diagram and Labels

17

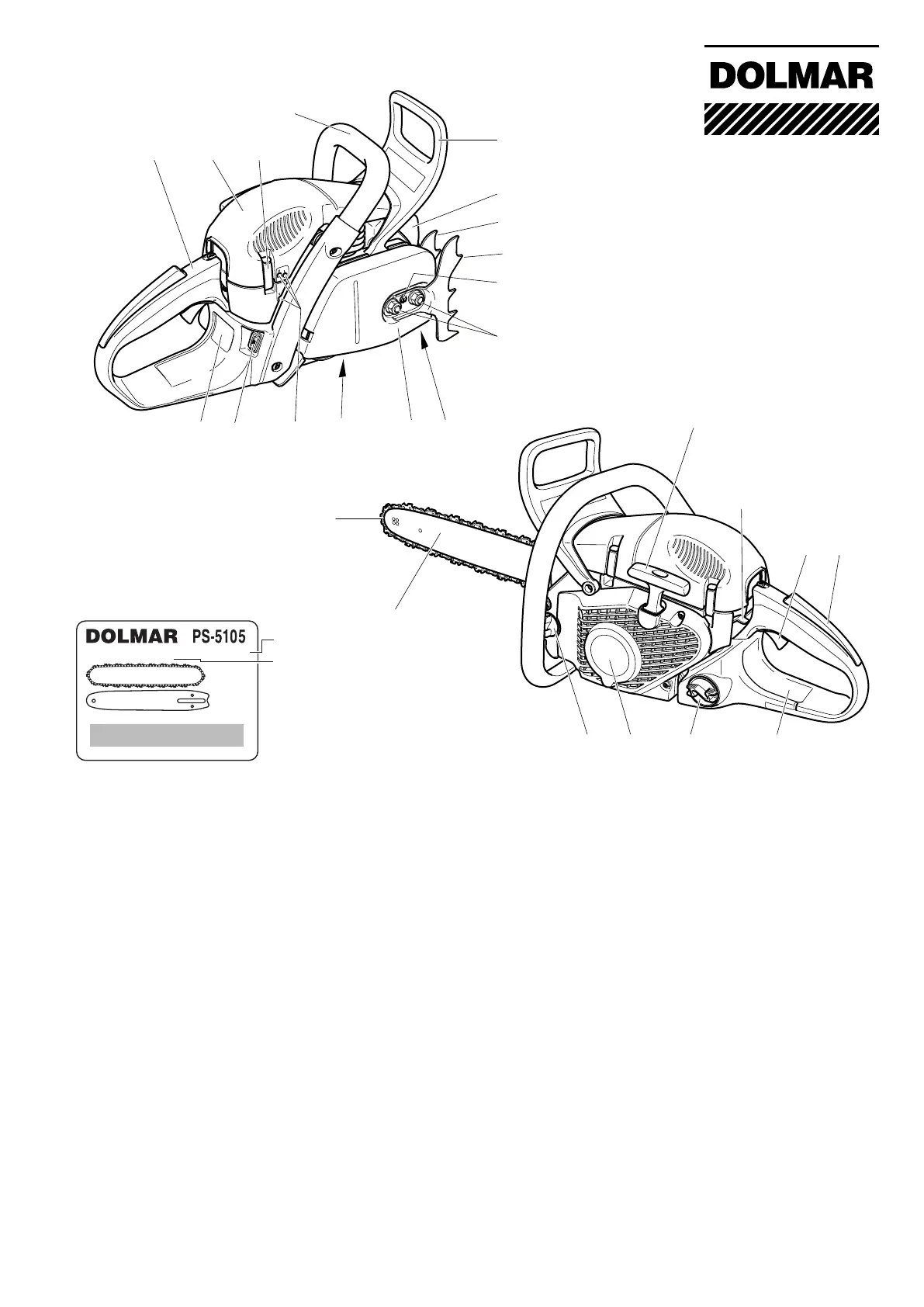

Denomination of components
Indicate when ordering spare parts!
Identication plate
Serial no.
Year of manufacture
(*) Only in delivery for model
PS-510, PS-5105, PS-5105 H
24
25
2
16
17
18 19
3
4
1
6
7
5
8
9
20212223
101112
1315 14
7*
1 Handle
2 Filter cover
3 Filter hood clip
4 Tubular handle
5 Hand guard (release for chain brake)
6 Mufer with spark arrester screen
7 Spike bar
(toothed stop for holding saw steady against wood)
8 Chain tensioning screw
9 Retaining nuts
10 Chain catch
11 Sprocket guard
12 Adjusting screw for oil pump (bottom side)
13 Adjusting screws for carburetor
14 Switch for grip heating (special equipment only
on PS-5105 H)
15 Identication plate
16 Starter grip
17
Combination switch (Choke / Start / Stop)
18 Throttle lever
19
Safety locking button
20 Rear hand guard
21 Fuel tank cap
22 Fan housing with starting assembly
23 Oil tank cap
24 Guide bar
25 Chain (Blade)
18" (450mm) 0903 123456
415.045.641
183.100.121 Typ 183
513.486.072
DOLMAR GmbH, 22045 Hamburg, Germany
