Dolphin DAS400 - Installation of DPS400 D & DPS400 M

10

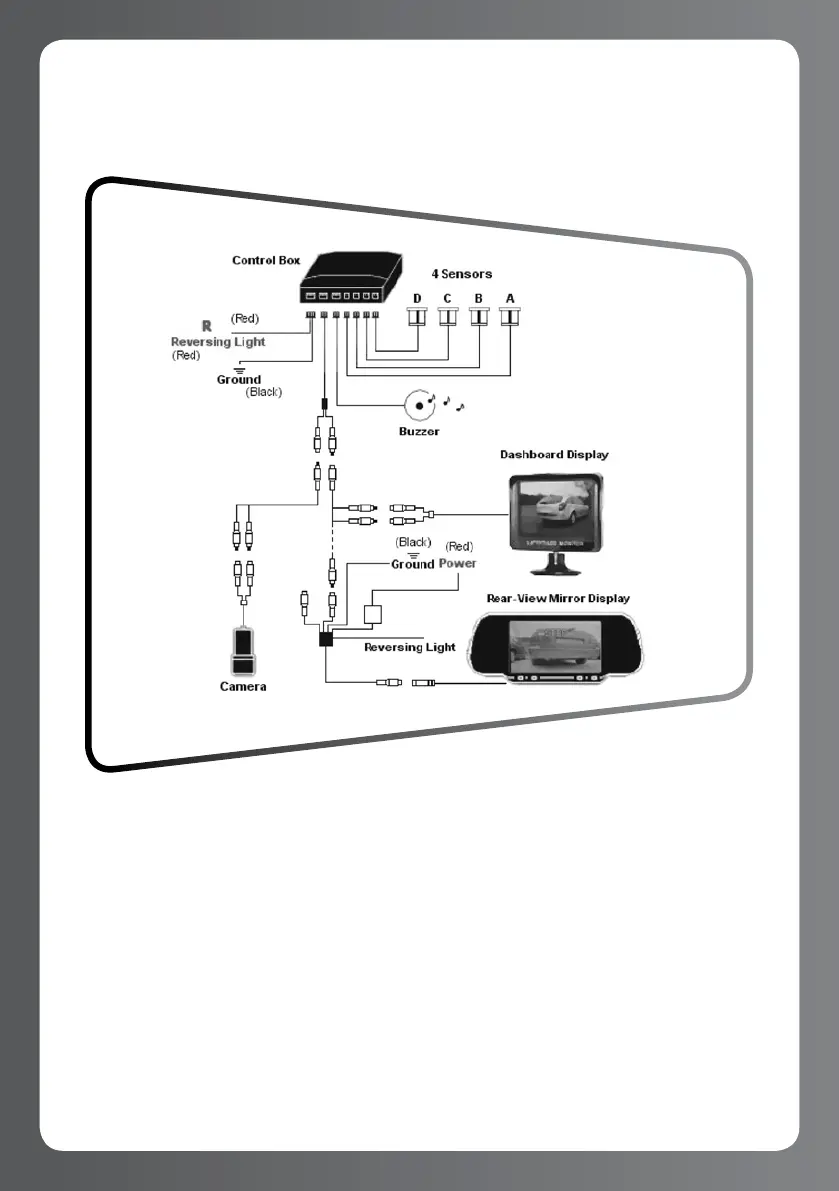

TheabovediagramshowstheDPS400M
rear-viewmirrordisplayoptionbut
thisisalsoavailablewithadashboard
mounteddisplayoption,DPS400D.
Adigitaldistanceread-outthesame
asshownofthedisplaymodels
DPS450/650/850isalsooverlaidontop
ofthepictureofwhatisbehindyou.
Themonitorneedstobepoweredfrom
theinteriorlightfeedorotherpower
sourcefromthefrontofthecarandcan
beconnectedtoareversinglightfeedto
trigger.TheDashboardMonitorcanbe
poweredfromthewiringofthecontrol
boxoritcanbepoweredindependently.
Thebuzzerisseparateonthissystem
andcanbemountedintherearofthe
vehicle.Thisisaloudbuzzerandon
mostcars,certainlyhatchbacksand
estates,thiscanbemountedintheboot
compartmentandeasilybeheardatthe
frontofthecar.
Pleasenotethecameraisadifferent
sizetothesensorsandseparatedrill
pieceissuppliedforthecamera.Make
sureyoudrilltheholesforthesensors
withthecorrectsizeddrillpiece.
INSTALLATION OF SYSTEM WITH REVERSING CAMERA &
MONITOR DPS400M / DPS400D
