Dolphin DAS400 - Dms400;450;455;470

5
INSTALLATION FOR 4 SENSORS
DAS400/450/470 DPS400/450/455/470
DMS400/450/455/470

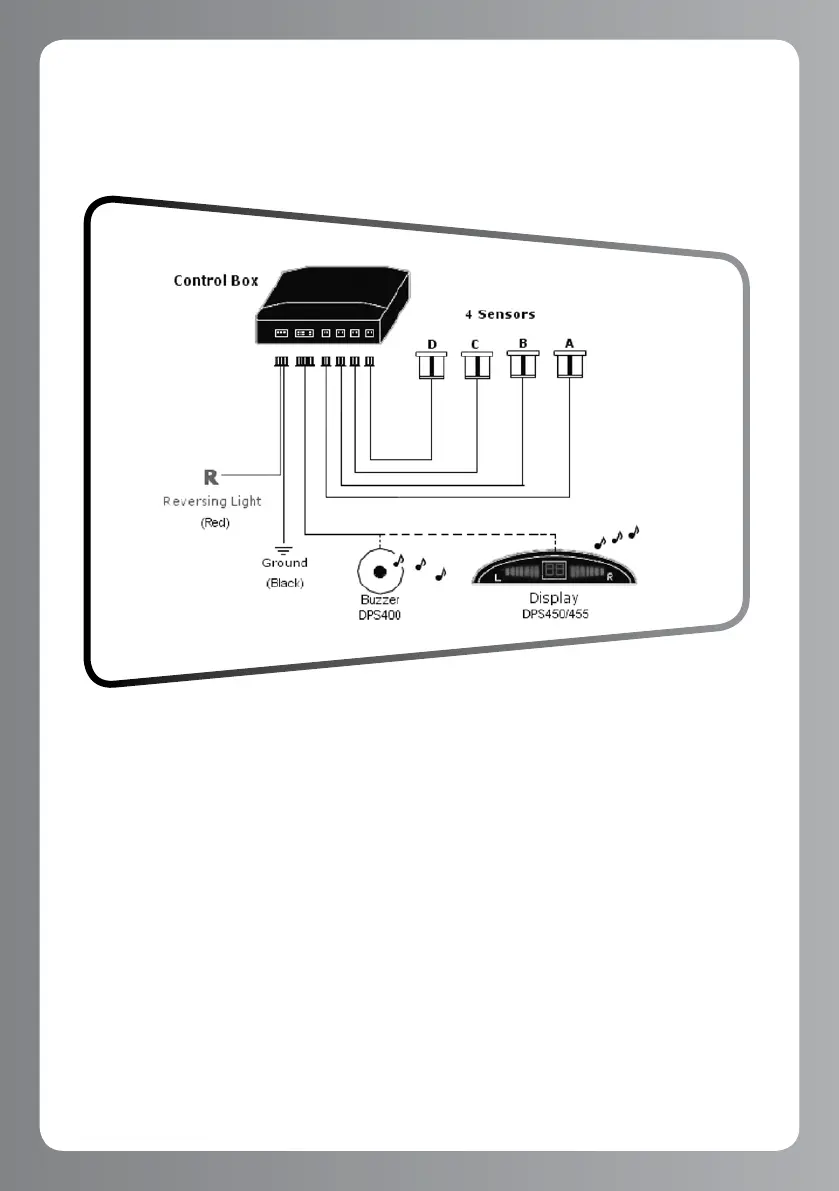

Thisdiagramisfortting4sensorsat
therearofthecarwiththebuzzeror
displayoption.
Forthe400audioonlybuzzermodels,
thisispluggedintothesocketmarked
DISP.Thisisaloudbuzzerandon
mostcars,certainlyhatchbacksand
estates,thiscanbemountedintheboot
compartmentandeasilybeheardatthe
frontofthecar.
Ifyouhavethe450ora455display
systemthebuzzerisbuiltintotheback
ofthedisplayandisnotaseparate
item.Thedisplayisona6mcable,the
450displayisdesignedtobemounted
onthedashboard.The455displayis
bothinvertedandreectedsoitcanbe
readbackwardsthroughyourreversing
mirrorandisdesignedtobemountedto
theroofintherearofthevehicle.
The470Wirelessdisplayalso
incorporatesabuzzer.Thiscomes
withacigarlighterplugontheend
forquickandeasyinstallation.Ifyou
wishthisplugcanbecutoffandthe
lead‘hardwired’tothefuseboxoran
appropriateignitionswitchedpower
feed.Thedisplaywillthenalwaysbelive
readytoreceiveasignalbutwillonly
comeonwhenreversegearisselected
andasignalisreceivedfromthebrain
boxintheboot.Weonlyrecommend
hardwiringthedisplayoncetherestof
thekitisfullyinstalledandtestedas
working.
