Dolphin DOL1000-MF - Installing a 433 MHz Module

OPTION 2: Installing a 433MHz Module
Antenna
Activation Wires:
Common & Normally Open
+
-
Any channel can be assigned for devices that connect to
normally open/normally closed.

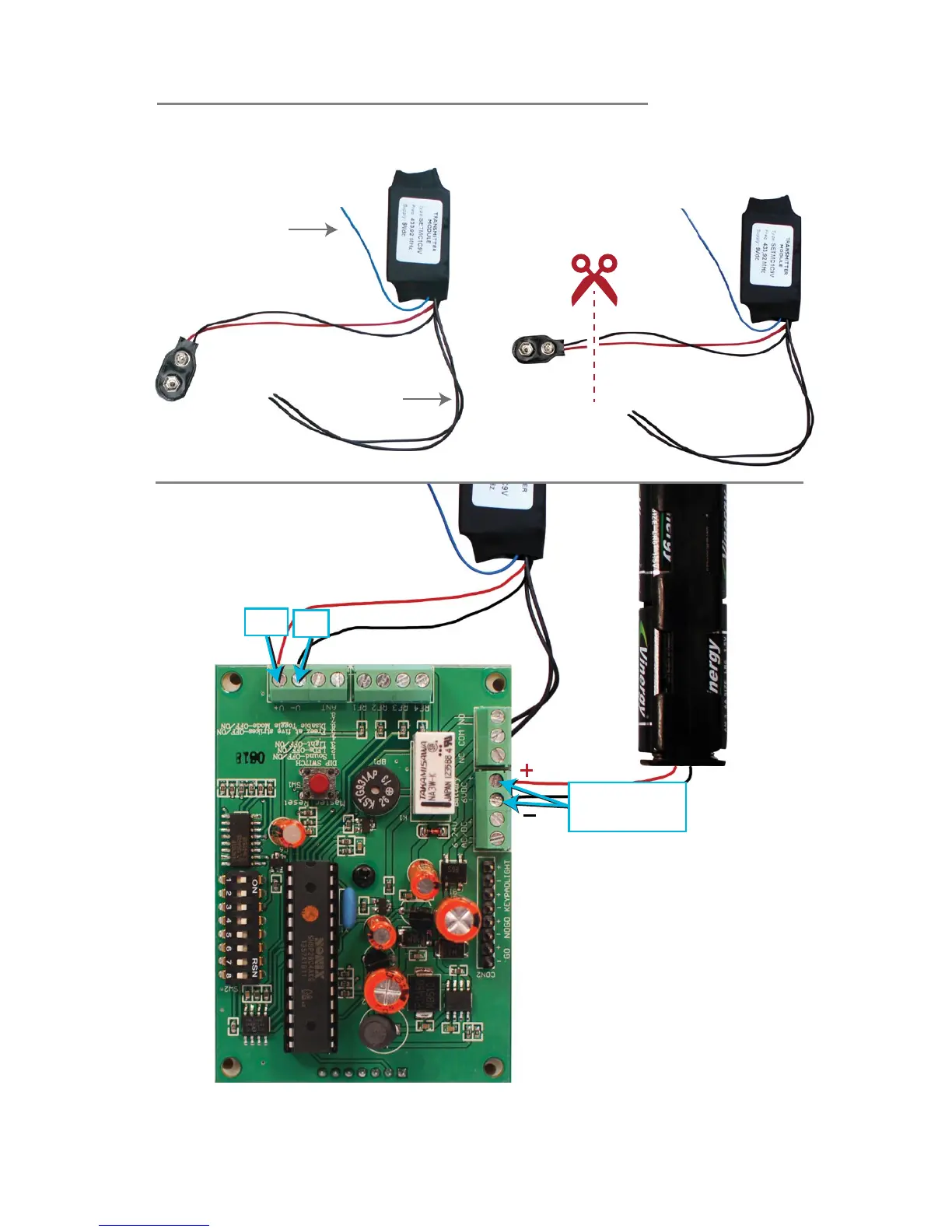

STEP 3: Install the
433 MHz Module
to the keypad board
• IMPORTANT
Be sure to connect the
power source to the correct
terminals! The battery
terminals and the AC/DC
terminals are different.
V+
V-
6 VDC
BATTERY
STEP1:
Prepare the
433 MHz module
STEP2:
Remove (cut) the
battery connector
