Caution! Please always align security rings in such a position that the flat
side of the security rings points towards the cam.

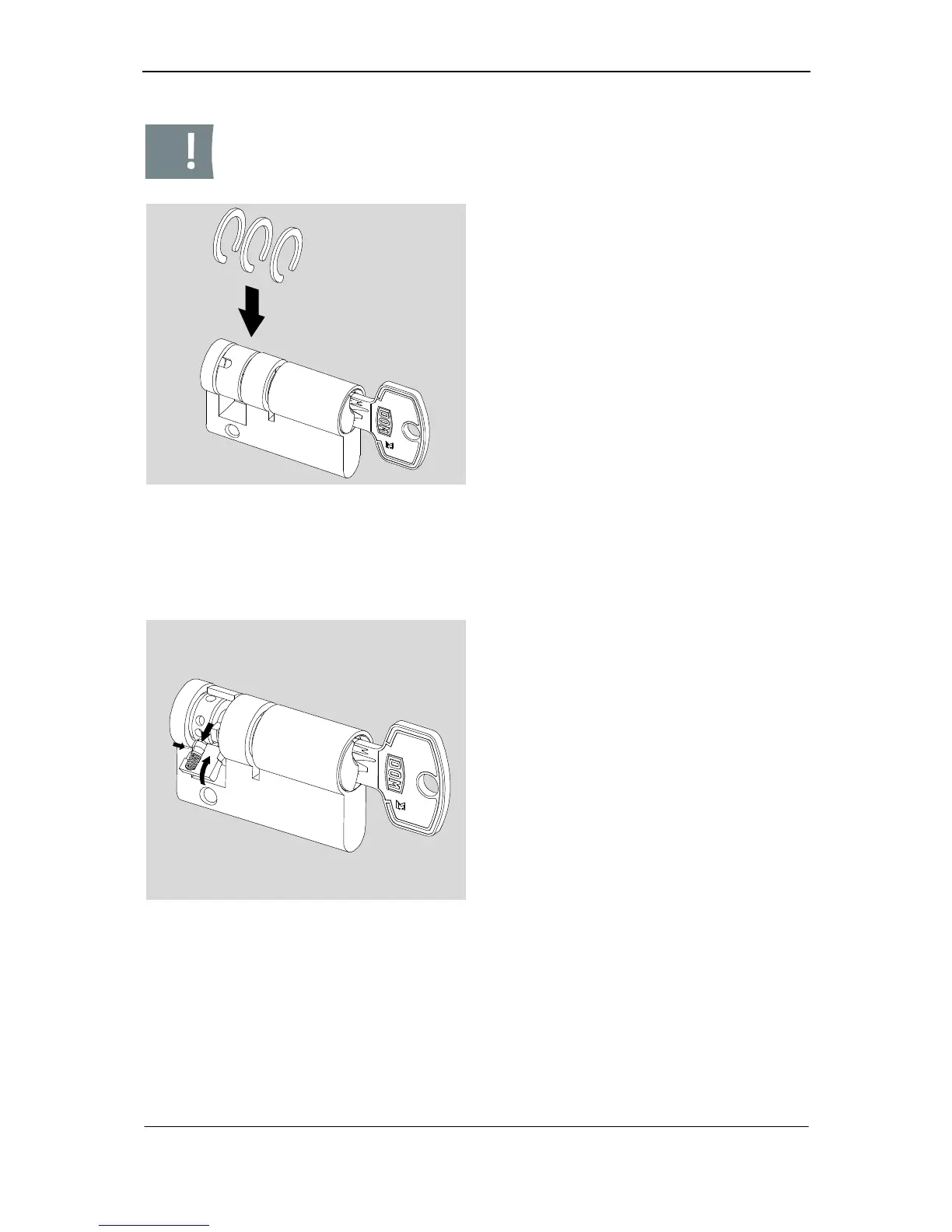

Fig. 22: Attaching security rings
9. Please push the core back into the
cylinder body.
10. Please turn the core into its initial po-
sition and pull out the key while fas-
tening the core.
11. Please bend security rings gently
apart.
12. Please insert security rings into the
respective positions.
13. Please press the security rings to-
gether with the appropriate pincers.
Adjusting cam
The cam may be adjusted in eight different positions as required.
Fig. 23: Adjustment of cam
14. Please pull down the spring pin of the
cam using a blunt object.
15. Please align cam at the required posi-
tion.
