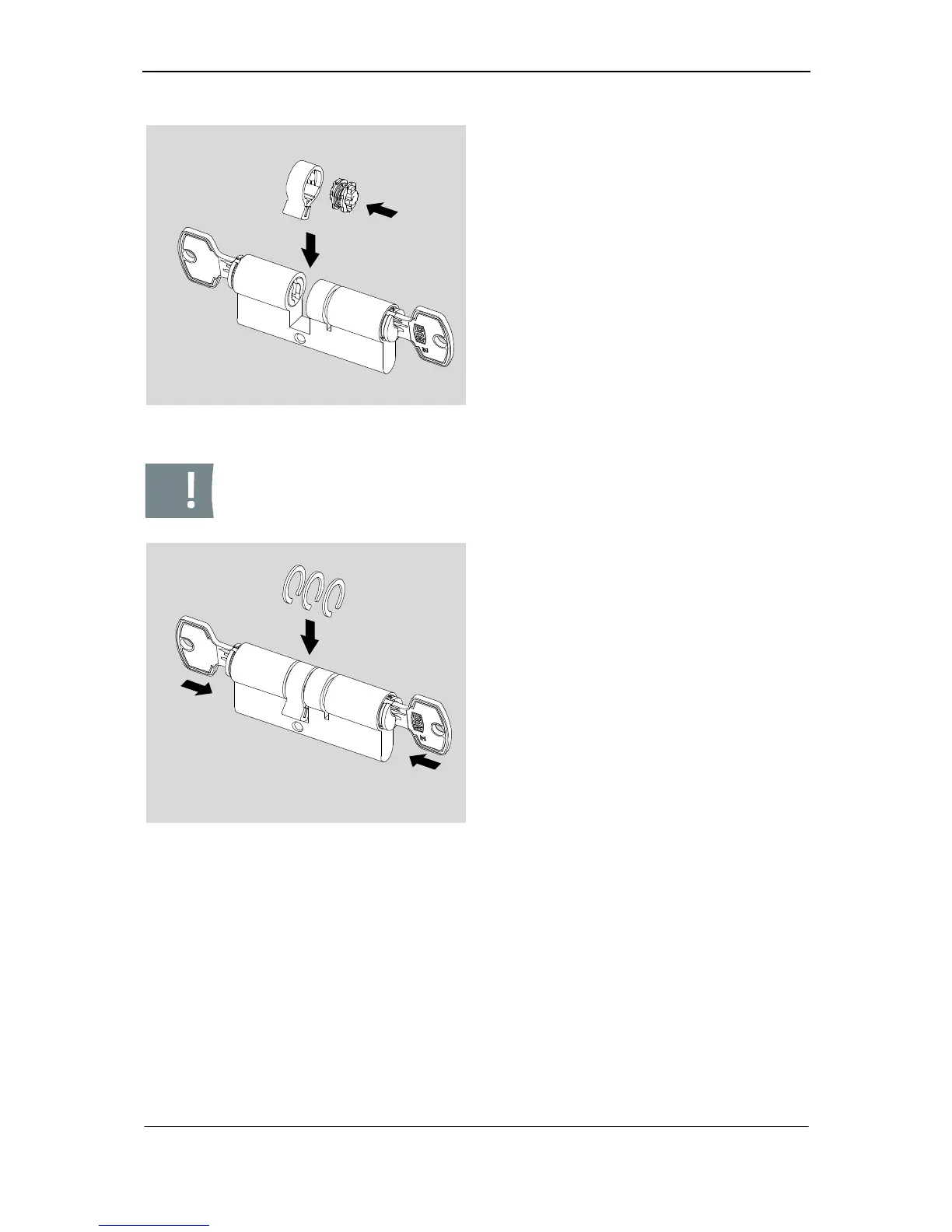

Fig. 26: Insertion of cam and coupling
4. Please insert the coupling accurately
fitting into the cam.
5. Please insert the cam with the cou-
pling into the centre of the cylinder
body.
6. Please hold the cam in such a posi-
tion that it provides flush fit with the
cylinder body at top and overlaps lat-
erally a little at the bottom.
Caution! Please always align security rings in such a way that the flat
side of the security rings point towards the cam.
Fig. 27: Insertion of security rings
7. Please push cores back into the cyl-
inder body.
8. Please turn the cores into their initial
position and pull out the keys by fas-
tening the cores.
9. Please bend security rings gently
apart.
10. Please insert security rings into the
respective positions.
11. Please press the security rings to-
gether with the appropriate pincers.
