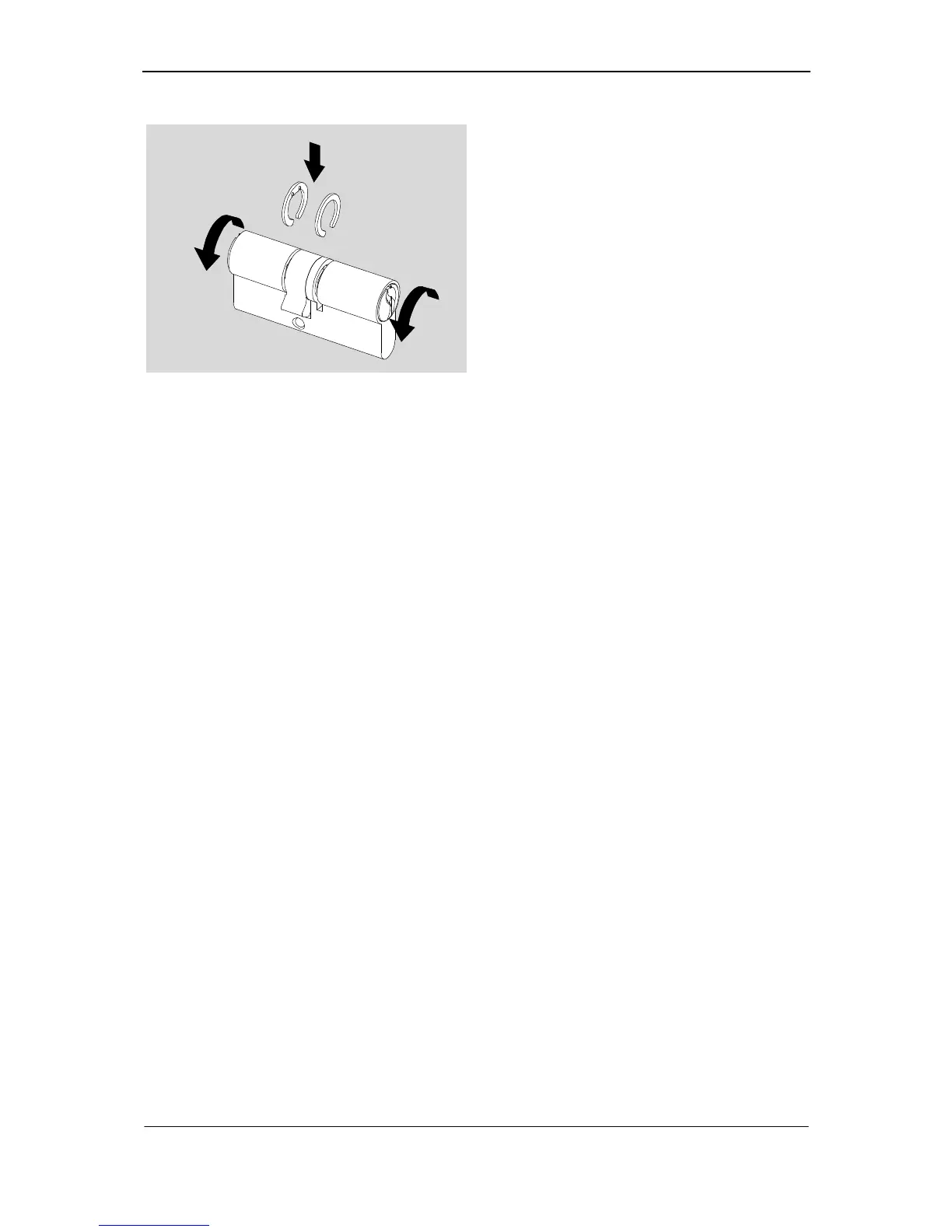

Fig. 38: Insertion of security rings
13. After having assembled the lock stud,
please rotate the long core counter-
clockwise and the short core clock-
wise into removing position.
14. Please bend security rings gently
apart.
15. Insert the security ring (202335F) at
the longer side.
16. Insert the security ring (214340F) at
the shorter side in a way that the stud
will engage with the groove (4 mm).
17. Please press the security rings to-
gether with the appropriate pincers.
