Dometic 3000 - Flush Mechanism Components

9

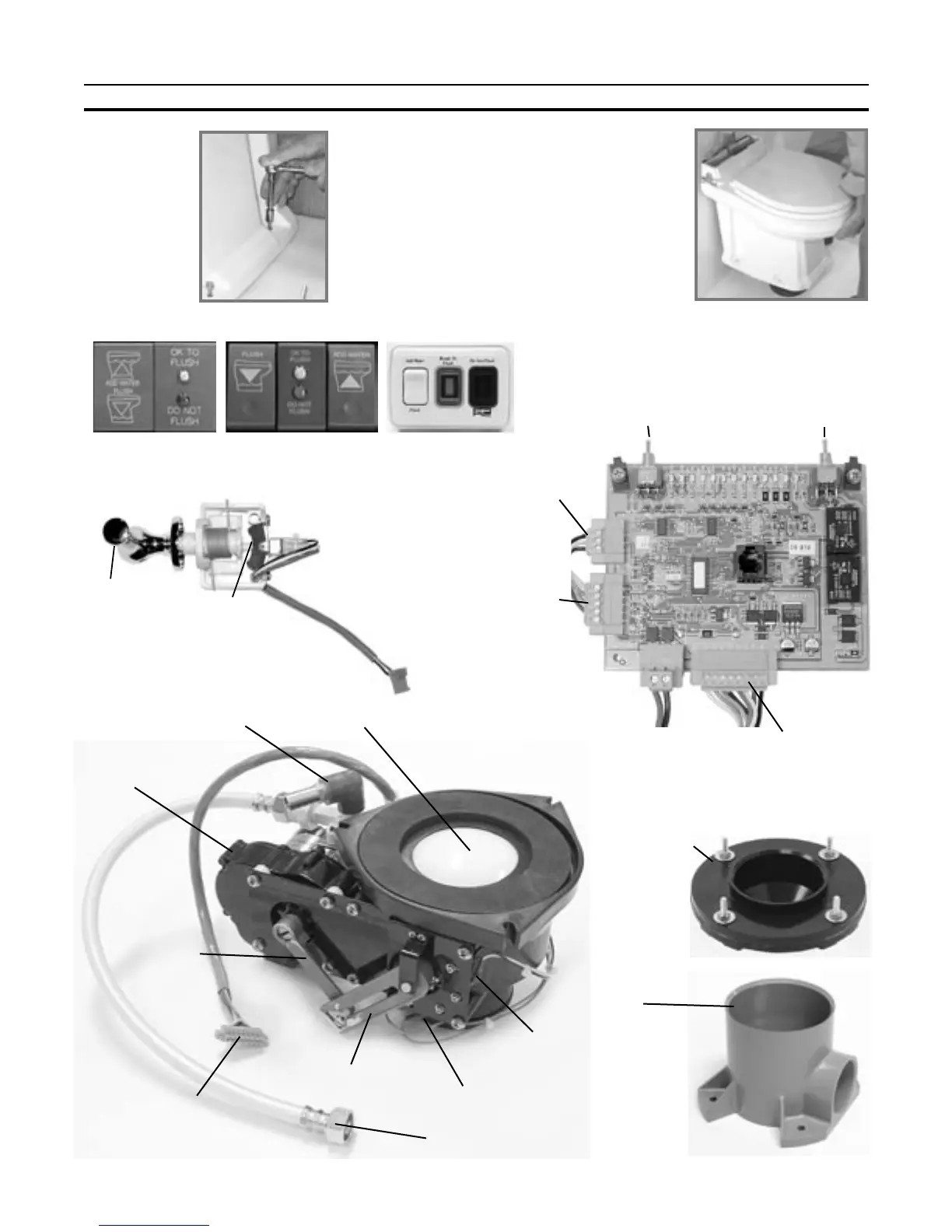

FLUSH MECHANISM COMPONENTS
1. To ac c es s
base assembly
c o m p o n e n t s ,
remove decora-
tive screw caps
and unscrew the
bolts that hold
china toilet to
floor.
2. Remove access cover.
Lift up control module. Dis-
connect power cable and
vacuum control cable from
control module. Do not
disconnect flush handle
cable or base assembly
cable.
3. Lift china toilet
straight up and set it
down close to front of
floor flange/adapter
assembly. Turn off
water to toilet and
disconnect flexible
water line at rear of
base assembly. The
toilet is completely
disconnected.
Mode
Switch
Water
Level Switch
Power
Cable
CONTROL MODULE
Input for
Base Assembly
Cable
Input
for
Flush
Switch
Cable
Input
for
Vacuum
Control
Cable
Flush
Switch
Flush
Handle
Cable
Flush
Handle
Base Assembly
Cable
BASE ASSEMBLY COMPONENTS
(under china toilet)
Water Valve
Flush Ball
Closed Limit
Switch
Motor
Drive Arm
Rotor Arm
Flush Valve
Motor
Flexible Water Supply Hose
Open Limit
Switch
Discharge Adapter
(3048, 3148, 3348,
3448)
FLUSH HANDLE (3000, 3300 toilets)
(under Access Cover)
REMOTE FLUSH SWITCHES (3100, 3400 toilets)
Vimar switch - marine Gewiss switch - marine RV flush switch
Discharge Adapter
(3006, 3009, 3106, 3109,
3309, 3409)
