Refrigerator operation
Decor panel dimensions (frame) :
743 +/- 0.5 mm 472 +/- 0.5 mm max. 2.2 mm
Casing width
486 mm
Height Width Thickness
743 +/- 0.5 mm 510,5 +0/- 1 mm max. 2.2 mm
Casing width
523 mm
Height Width Thickness
RM(S)L 8xxx
1169.5 +0/-1 mm 507.5 +0/-1 mm max. 1.5 +0/-1 mm
Casing width
523 mm
Height Width Thickness
Fig. 47
Modell RMx(L) 8xxx
(frameless decor panel)
1
Fig. 50
Fig. 48 Fig. 49
3
4
2

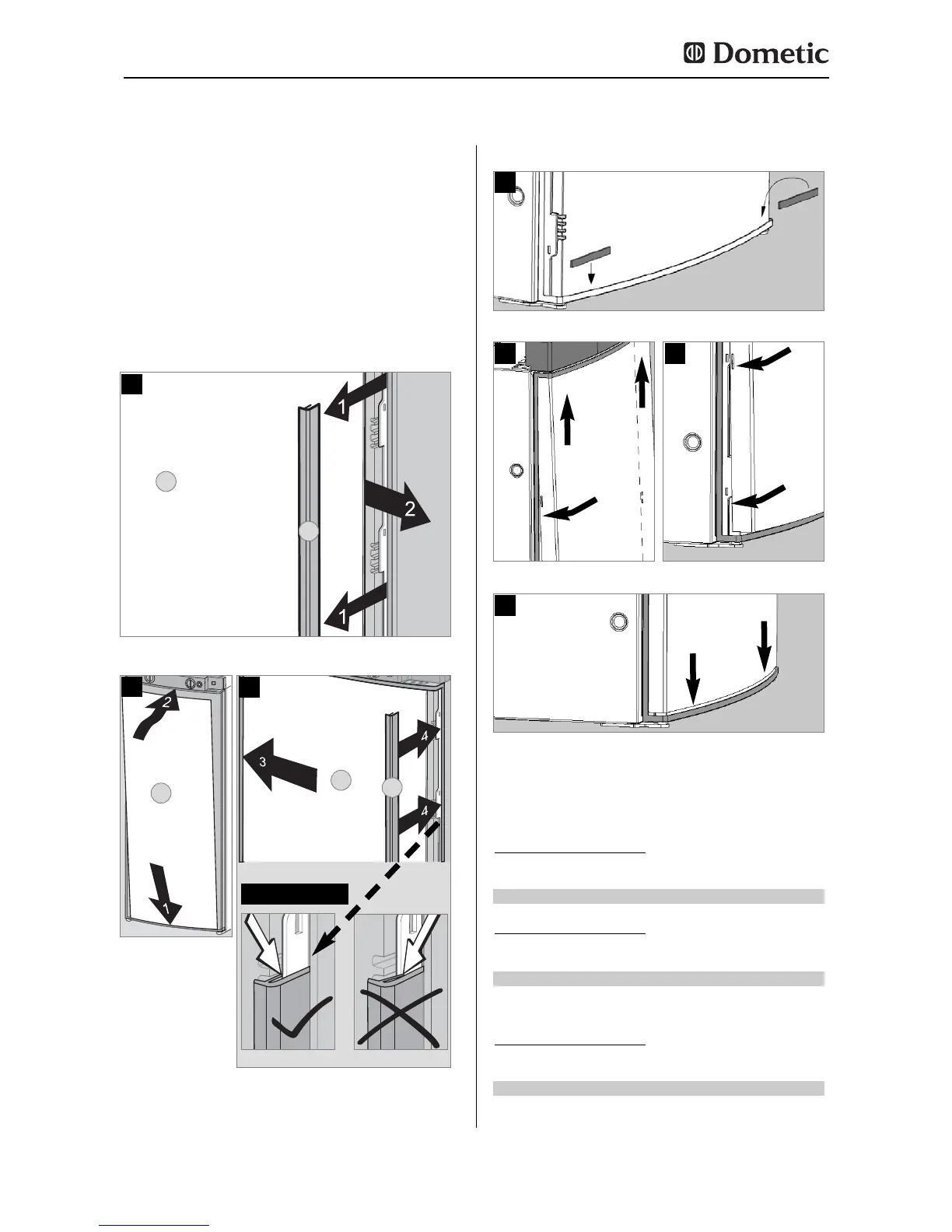

4.19 Changing the decor panel
Fig. 46
Fig 45
Fig. 44
Model RMS 84xx, RM 8xxx, RM(S)L 8xxx
(with frame)
RMS 84xx, RM 8xxx
2
1
2
2
1
1
1.
1.
2.
2
3
CAUTION!


Remove the lateral ledge (1) the door
(ledge is attached, not screwed).
Shift decor panel (2) away from the door
and insert the new decor panel. Re-attach
ledge (1) .
