General Information Value Air Distribution Box (ADB), Mechanical
3 General Information
This section provides general information about the unit
and its components.
I
The images used in this document are for reference
purposes only. Components and component
locations may vary according to specific product
models. Measurements may vary ±0.38 in. (10 mm).
3.1 Tools and Materials
Dometic recommends that the following tools and
materials be used.
Recommended Tools and Materials
Framing Wood All-Weather Caulk
Knife/Box Cutter Screwdrivers
Electrical Connectors 3/8” Torque Wrench Socket
Basic Electrical Connection
Tools
Torque Wrench
1
(40 in lbs)
1
Models FJX3473 and FJX3573 require a Torque Wrench (22.2 in lbs).
Optional Parts
1
Spare Foam Divider Kit 3106756.087
1
Available as an accessory (not included). Accommodates a roof thickness
greater than 5.5 in. (140 mm) and includes two spare 1.2 in. (30mm) foam
dividers and four 9-1/2 in. long bolts.
3.2 Model Identification
The model identification labels are located as follows:
• The rooop component and serial numbers are found
on the identification label located on the bottom of
the base pan. To view the identification label, remove
the return air vent grille from the ADB.
• The ADB component model and serial numbers
are found on the rating plate located on the ceiling
template. To view the rating plate, look through the
filter opening.
I
Have this information ready before contacting
Dometic for service.

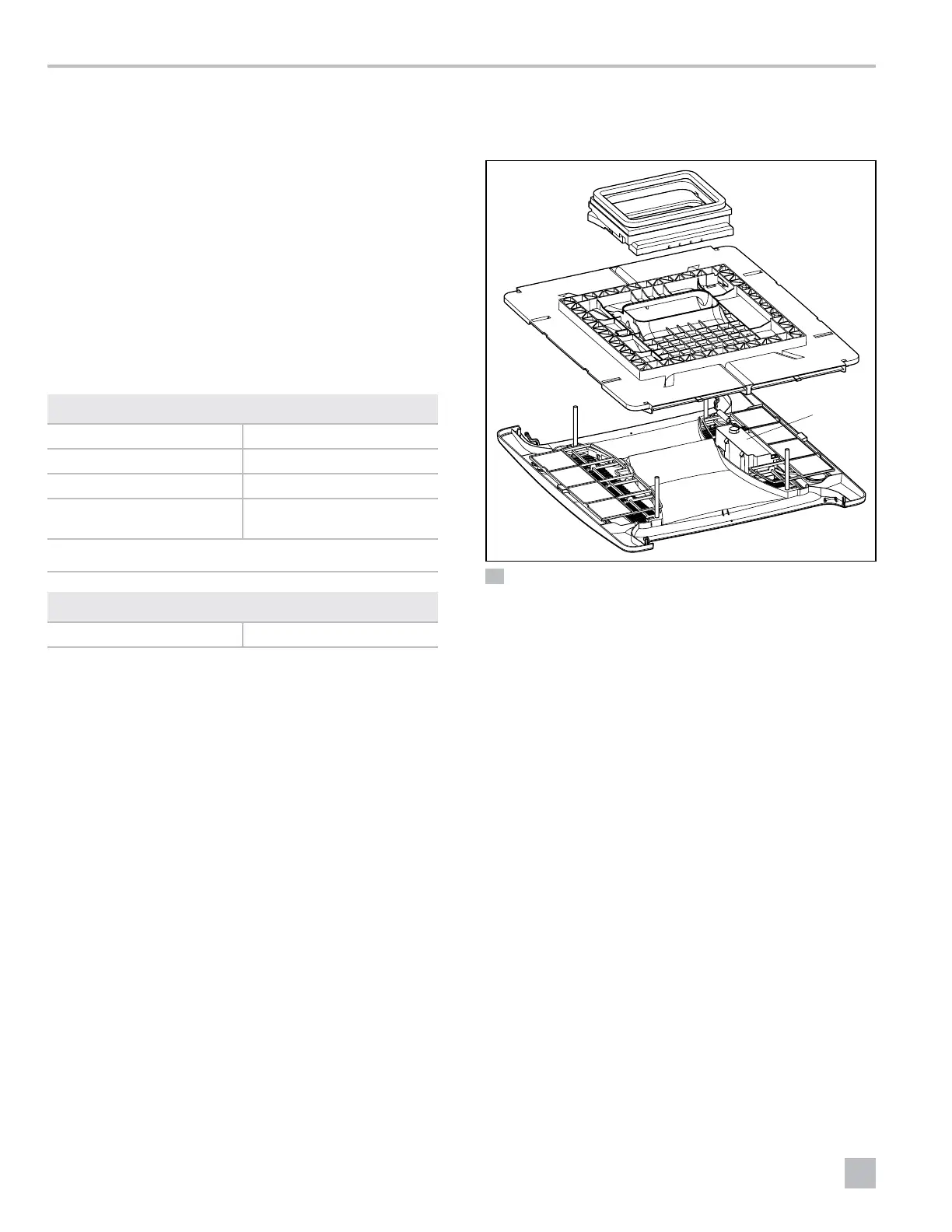

3.3 ADB Components
This section identifies the main ADB components.
q
w
t
r
e
1 ADB Components
q
Foam Dividers
r
ADB Cover
w
Ceiling Template
t
Long Bolts
e
Control Box
